Ever walked onto a sprawling factory floor and felt the hum of dozens, maybe even hundreds, of motors powering everything from conveyors to massive industrial pumps? It’s a symphony of controlled chaos. Now, imagine trying to manage each one of those motors individually. That’s a recipe for disaster.
This is exactly where a Motor Control Center, or MCC, comes into play. Think of it as the central nervous system for your entire operation. It’s not just a big metal box; it's the command hub that brings order, safety, and efficiency to all that electromechanical muscle.
The Heart of Industrial Automation
At its core, an MCC is an assembly of one or more enclosed cabinets that houses all the individual motor control units. We often call these individual units "buckets" or "cubs" in the field. Each bucket is dedicated to a specific motor, giving you a single, centralized spot to manage your entire fleet of electric motors.
This modular design is what makes it so powerful. Instead of running around the plant floor to start, stop, or troubleshoot a machine, you can do it all from one location. If you're looking to understand the components they control, you can explore a wide variety of these in our guide to industrial electric motors.
To truly get a handle on what an MCC does, let's break down its core functions and the components that make it all happen.
Core Functions and Components of a Motor Control Center at a Glance
An MCC isn't just a simple on/off switch. It’s a sophisticated system designed for control, protection, and streamlined management. The table below gives you a quick snapshot of what it does and the key hardware involved.
| Core Function | Description | Key Components Involved |
|---|---|---|
| Control | Provides the ability to start, stop, reverse, or adjust the speed of individual motors, giving operators precise command over machinery. | Motor Starters, Push Buttons, Variable Frequency Drives (VFDs) |
| Protection | Acts as a vigilant bodyguard, safeguarding expensive motors from electrical faults like overloads, short circuits, and phase loss. | Circuit Breakers, Fuses, Overload Relays |
| Centralization | Consolidates all motor controls into a single, organized location, which drastically simplifies maintenance, troubleshooting, and monitoring. | Enclosures, Bus Bars, Terminal Blocks, Control Wiring |
By bringing these elements together, the MCC transforms a collection of independent machines into a cohesive, manageable production system.
This approach is so fundamental to modern industry that its value is growing rapidly. The global MCC market was valued at around USD 6.96 billion and is projected to skyrocket to nearly USD 12.14 billion by 2032. This isn't just a trend; it's a testament to how essential centralized control has become. You can dive deeper into the growing MCC market trends on maximizemarketresearch.com.
An MCC isn't just a cabinet of switches; it is the foundational platform for safe, efficient, and scalable industrial automation. It transforms a collection of individual machines into a cohesive, manageable production system.
Ultimately, an MCC is the backbone of any serious industrial operation. It’s the unsung hero ensuring every motor does its job correctly and safely, keeping the wheels of modern manufacturing and processing turning without interruption.
Anatomy of a Motor Control Center
To really understand what a motor control center is, you have to look past the steel doors. The best way to think about it is like a heavy-duty, industrial filing cabinet. But instead of holding paperwork, each drawer is a self-contained unit built to power, protect, and control a single motor out on the plant floor. That modular design is the secret sauce behind its efficiency and safety.
Let's pull open those drawers and deconstruct this "filing cabinet" piece by piece. We'll see how it takes immense electrical power and channels it into precise, useful work. At its core, the system is built on a clear hierarchy for power distribution.

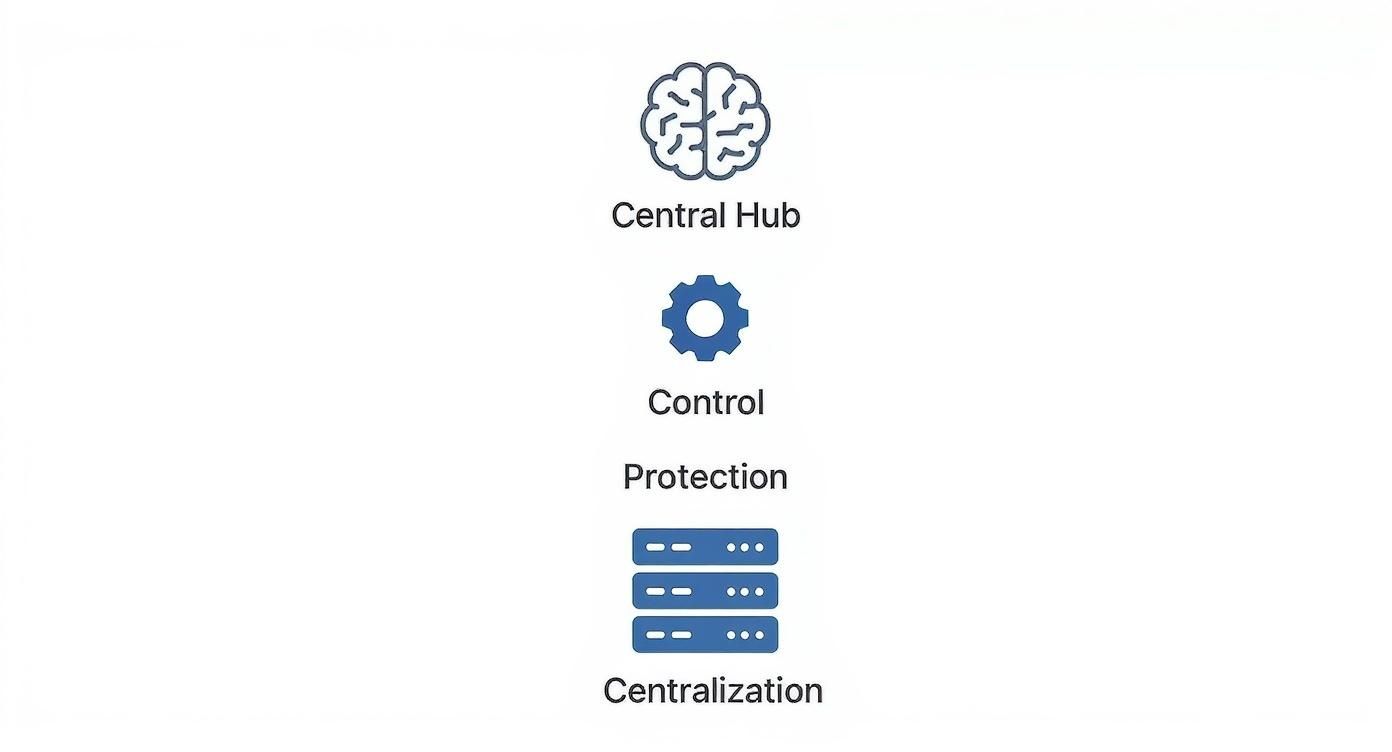

This diagram gives you a great visual of how an MCC acts as a central hub, handling the core jobs of control, protection, and centralization all in one spot.
As you can see, the MCC is positioned as the "brain" of the operation, delegating specific tasks to its internal systems—which is a perfect reflection of how the physical components are actually laid out.
The Power Superhighway: Main and Vertical Bus Bars
The backbone of any MCC is its bus bar system. Think of the main horizontal bus as a multi-lane electrical superhighway. It typically runs across the top of the entire MCC structure, carrying the massive bulk power feed—often thousands of amps—from the main transformer or switchgear.
Branching off this highway are the vertical bus bars, which run up and down each vertical section of the cabinet. These act like exit ramps, safely tapping into the main power and delivering it to each level where a motor control unit can be plugged in. This incredibly robust framework ensures every single unit gets a reliable, high-current connection.
Individual Motor Units: The Buckets
Now for the most recognizable part of an MCC: the individual motor control unit, which everyone in the industry calls a bucket or cubicle. These are the removable "drawers" from our filing cabinet analogy. Each bucket is a complete, self-contained module with all the gear needed to control and protect one specific motor.
This modular, slide-out design is an absolute game-changer for maintenance. A technician can safely kill the power to a single bucket, pull it out for repair or replacement, and leave the rest of the MCC running. No more shutting down an entire process to fix one motor.
Inside each bucket, you'll find a small team of components working in concert.
- Motor Starter: This is the workhorse, usually a contactor, that physically starts and stops the motor by connecting or disconnecting it from the power bus.
- Overload Relay: Think of this as the motor’s personal bodyguard. It constantly watches the current being pulled by the motor. If it senses the motor is working too hard and drawing too much current for too long, it trips and cuts power, saving the motor from burning itself out.
- Circuit Breaker or Fuses: This is your catastrophic failure protection. It acts instantly to kill the power during a major fault, like a dead short. It’s designed to prevent a single motor failure from turning into a much bigger, more destructive problem for the whole MCC.
Supporting Components and Control Logic
Beyond the main power-handling parts, a few other components play crucial roles inside the bucket and the wider MCC structure.
You'll almost always find a control power transformer (CPT) tucked inside a bucket. Its job is simple but vital: it steps down the high motor voltage (like 480V) to a much safer, lower control voltage (usually 120V AC or 24V DC). This low voltage powers the starter coils, indicator lights, and push buttons, making the system far safer for operators and electricians to interact with.
Every element within a motor control center, from the main bus to the smallest terminal block, is engineered for a specific purpose. It's a system where high power and precise control meet in a safe, centralized, and serviceable package.
Finally, you have the control wiring and terminal blocks. These are the nerves of the system. They connect the bucket to the outside world—to start/stop buttons on a control panel, to sensors out on the line, and increasingly, to Programmable Logic Controllers (PLCs) for full automation. This is where the "control" in Motor Control Center truly happens, turning a simple signal into a powerful action at the motor.
Exploring the Different Flavors of MCCs
Just like you wouldn't grab a sledgehammer to do a watchmaker's job, not all Motor Control Centers are built the same. They come in different varieties, each engineered for specific voltage demands, operational smarts, and maintenance philosophies. Picking the right one is crucial—it's like choosing the central nervous system for your entire operation.
The first and most obvious way to slice it is by voltage. MCCs are fundamentally categorized by the power levels they're designed to handle, which dictates where and how they fit into the industrial landscape.
This evolution from simple electrical closets to data-rich nerve centers is a story about modern industrial automation. The global MCC market, valued at USD 5.95 billion, is on a trajectory to hit USD 11.89 billion by 2035. This growth isn't just about needing more power; it's about the industry-wide shift toward smarter manufacturing. You can dig deeper into the factors driving the MCC market on marketresearchfuture.com.
Low Voltage vs. Medium Voltage MCCs
The first fork in the road when you're looking at MCCs is the voltage rating. This single detail determines the scale and type of machinery it can safely wrangle.
- Low Voltage (LV) MCCs: These are the ones you'll see most often. Operating at 600V or less (with 480V being a very common sight in the US), they are the absolute workhorses of manufacturing plants, commercial buildings, and processing facilities. They're busy running the standard-sized motors for your conveyors, pumps, fans, and mixers.
- Medium Voltage (MV) MCCs: When you're dealing with the really big stuff, you need more muscle. MV MCCs handle voltages from 2.3kV all the way up to 15kV. You'll find these beasts in heavy-duty sectors like mining, oil and gas, and power generation, where they're tasked with controlling massive compressors, grinders, and pumps that need a huge jolt of power to get going and keep running.
Conventional vs. Intelligent MCCs
Beyond raw power, the next big divide is intelligence. The technology tucked inside each MCC bucket has come a long way, creating a clear line between the old-school traditional units and the new, data-driven ones.
A conventional MCC is pure, reliable electromechanical brawn. It relies on hardwired connections to do its job: start, stop, and protect a motor. They're incredibly dependable and have a long-proven track record, but troubleshooting usually means getting hands-on with a multimeter. You're not getting much operational data out of them.
Then you have the Intelligent MCC (iMCC), which brings communication smarts right into each motor control unit. Think of it as the brainy evolution of its predecessor.
An iMCC isn't just an electrical distribution hub anymore; it's a rich source of operational data. It gives you a real-time window into the health and performance of every single motor in your plant.
These smart units are networked, talking directly to the plant's main control system—a PLC or DCS. This constant conversation allows for remote monitoring and control, but more importantly, it streams a ton of valuable diagnostic data: motor current, temperature, run-time hours, you name it. This information is pure gold for predictive maintenance, helping teams catch potential failures long before they shut down a production line.
Here’s a look at how these two types stack up side-by-side.
Comparing Conventional MCCs vs. Intelligent MCCs (iMCCs)
| Feature | Conventional MCC | Intelligent MCC (iMCC) |
|---|---|---|
| Control Logic | Hardwired, relay-based logic. | PLC/DCS integrated, software-based logic. |
| Diagnostics | Manual troubleshooting with meters. | Real-time, remote diagnostics and fault data. |
| Data Availability | Limited to none. | Rich data stream (current, temp, runtime, etc.). |
| Maintenance | Reactive; fix things when they break. | Predictive; fix things before they break. |
| Footprint | Requires more field wiring and I/O cabinets. | Reduced footprint, less field wiring. |
| Commissioning | Time-consuming point-to-point wiring checks. | Faster commissioning through network checks. |
| Typical Use | Simpler applications, tight budgets. | Critical processes, data-driven operations. |
While conventional MCCs are still a solid choice for straightforward jobs, the move toward iMCCs reflects a bigger trend: using data to make smarter, safer, and more profitable decisions on the plant floor.
Fixed vs. Withdrawable Unit Designs
Finally, we have the physical design of the units themselves, which has a huge impact on maintenance and uptime.
- Fixed MCCs: In this setup, all the motor control components are bolted directly into the structure. It’s a more budget-friendly option upfront, but if you need to perform maintenance or replace a unit, you have to shut down that entire section of the MCC.
- Withdrawable MCCs: This is the modular "bucket" design we talked about earlier. Each unit can be physically disconnected and pulled out while the main bus bars stay energized. For any facility where every minute of uptime counts, this feature is a lifesaver. A faulty unit can be swapped with a spare in minutes, minimizing production loss and keeping technicians much safer.
Understanding Essential MCC Standards and Safety
When you pack that much electrical muscle into one place, like a motor control center does, you have to play by a strict set of rules. We're talking about standards and safety protocols that aren't just suggestions—they’re the bedrock of reliable engineering and, more critically, keeping people safe. Getting these guidelines right is non-negotiable for anyone specifying, installing, or working near an MCC.
In North America, the National Electrical Manufacturers Association (NEMA) is the authority for this kind of gear. NEMA sets the standards for enclosures, which basically tells you how well an MCC is shielded from its surroundings. Getting this rating right is the first step to making sure your equipment is a good match for its environment.
Decoding NEMA Enclosure Types
Think of a NEMA rating as the right kind of armor for your MCC. You wouldn't wear shorts in a blizzard, and you definitely wouldn't stick a standard indoor MCC in a washdown area of a food plant. Each NEMA type spells out exactly what it can handle in terms of dust, water, and other hazards.
You'll run into these all the time:
- NEMA 1: This is your basic indoor model. It keeps fingers and falling dirt out of the live parts but won't do a thing against liquids. It’s perfect for a clean, dry electrical room and not much else.
- NEMA 12: A solid step up, this one is built for the factory floor. It’s designed to handle the dust, dirt, and dripping, non-corrosive liquids common in industrial settings.
- NEMA 4X: This is the heavyweight champ. It’s watertight like a standard NEMA 4 enclosure, but with a crucial upgrade: corrosion resistance. Usually built from stainless steel or fiberglass, these are the go-to for tough spots like wastewater treatment plants, food processing facilities, and coastal locations where salty air is a problem.
Choosing the right NEMA enclosure isn’t just a detail; it's a foundational decision that impacts the safety and lifespan of your entire motor control system.
Confronting the Danger of Arc Flash
Beyond just keeping the elements out, the most terrifying risk with an MCC is an arc flash. This isn't just a spark; it's a full-blown electrical explosion that happens when a short circuit jumps through the air. It unleashes a blinding flash, a blast of heat that can hit 35,000°F, and a powerful pressure wave. It's an absolutely lethal event for anyone caught nearby.
To tackle this incredible danger, the industry developed arc-resistant MCCs. These aren't just regular cabinets with thicker steel. They are meticulously engineered systems designed to contain an arc flash and channel its explosive force safely away from people.
An arc-resistant MCC uses a combination of reinforced doors, heavy-duty latches, and specially designed vents or plenums. If an arc flash happens, this system works in concert to direct the superheated gases and blast pressure up and away from anyone standing in front of the unit. It’s a design that dramatically increases the odds of survival.
This isn't just an optional add-on; it's a life-saving feature for any high-energy application. While following general safety guidelines is always a must, specifying arc-resistant gear is a proactive step that prevents catastrophic injuries. And, of course, a solid understanding of the protection of motors is the first line of defense, helping to prevent the very faults that can lead to these disasters.
Real-World Applications of Motor Control Centers
Theory and components are one thing, but where does the rubber really meet the road? To get a feel for what a motor control center actually does, you have to see it in action. These centralized power hubs are the unsung heroes in nearly every major industry, pulling the strings in some of the world's most demanding environments.
Looking at their real-world applications truly highlights their a vital role in manufacturing and industrial operations.
From the precise choreography of an automotive assembly line to the life-sustaining processes of a water treatment plant, MCCs provide the steady, coordinated control that modern industry is built on. Let's dive into a few key sectors where these systems are absolutely essential.
Oil and Gas Operations
The oil and gas industry is a world of extremes. Safety and reliability aren't just goals—they're non-negotiable. In these hazardous, often explosion-prone environments, MCCs are built tough, specified with robust, explosion-proof enclosures (like NEMA 7) to ensure a single spark can't ignite flammable gases.

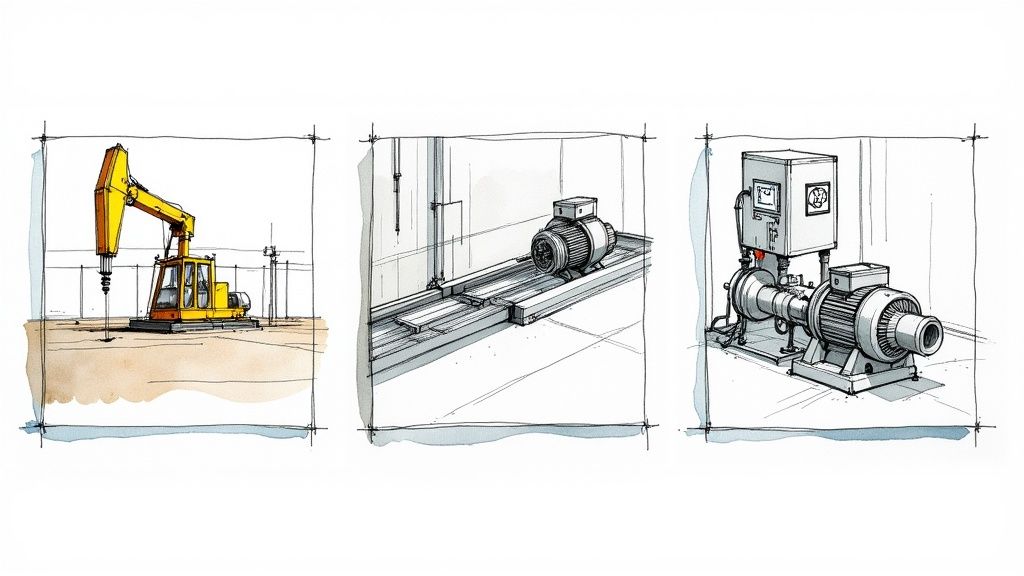

They are the command center for the powerful motors that drive:
- Pumps that push crude oil through miles of pipeline.
- Compressors that manage natural gas pressure with incredible force.
- Drilling equipment spinning away on offshore rigs and remote fields.
In this field, the MCC's ability to centralize control in a safe area while managing equipment in a hazardous zone is mission-critical. Downtime is incredibly expensive, and a failure can have devastating safety consequences, making the MCC the operational heart of the entire facility.
In high-stakes industries like oil and gas, an MCC is more than a convenience; it's a foundational safety system that enables complex operations to run without incident in the harshest conditions imaginable.
Automotive Manufacturing and Automation
Ever walk onto the floor of a modern car factory? It's a symphony of automation. Robotic arms weld frames with perfect precision as conveyor belts shuffle chassis seamlessly down the assembly line. The conductor of this complex dance is a series of motor control centers.
In this world, uptime and precision are everything. An MCC delivers the coordinated control needed for thousands of motors to work in perfect harmony. Its modular, withdrawable bucket design is a massive advantage here—a faulty motor unit can be swapped out in minutes, preventing a costly shutdown of the entire production line.
The automotive industry relies heavily on MCC technology. In fact, this segment is projected to capture about 35% of the market share by 2035, a trend supercharged by the global shift to electric vehicles and the intense automation their production demands. This growth is especially strong in the Asia-Pacific region, which holds a dominant 44.01% of the market thanks to rapid industrialization.
Water and Wastewater Treatment
Clean water is a vital public service that runs 24/7, and MCCs are at the very core of these essential facilities. They control the motors for the pumps, blowers, clarifiers, and mixers responsible for moving and treating millions of gallons of water every single day.
A treatment plant can be an incredibly corrosive environment, with high humidity and constant exposure to chemicals like chlorine. That's why MCCs in these plants are often housed in rugged NEMA 4X stainless steel or fiberglass enclosures designed to resist rust and degradation.
Intelligent MCCs are also becoming the standard, allowing operators to remotely monitor pump performance and energy usage. This helps municipalities run more efficiently and, more importantly, predict maintenance needs before a critical failure occurs.
How to Specify, Install, and Maintain Your MCC
A motor control center is a serious, long-term investment—it's the operational backbone of your facility. Getting the most out of that investment comes down to three critical phases: getting the specs right, installing it correctly, and being proactive with maintenance. Treating these steps as an afterthought is just asking for inefficiency, unexpected downtime, and serious safety risks.
Think of it like building a high-performance engine for a race car. You wouldn't just grab random parts off a shelf and hope for the best. You'd carefully select every component for your specific performance goals, assemble it with absolute precision, and stick to a strict service schedule to keep it at peak performance. Your MCC deserves that exact same methodical approach to guarantee a long and reliable life.
Specifying Your MCC for Success
The specification phase is where you lay the entire foundation for a successful project. This isn't just a shopping list; it's where you translate your real-world operational needs into a detailed technical blueprint. Rushing this stage is a common mistake that leads to an undersized, oversized, or poorly configured system that will cause headaches for years to come.
A thorough spec process means taking a deep dive into your plant's electrical and mechanical landscape. Getting these details right from the start ensures the final product is a perfect fit for what you need it to do.
Before you sign off on any design, make sure you've worked through this checklist:
- Load Requirements: What are the horsepower, full-load amp (FLA) ratings, and service factors for every single motor this MCC will control? Be exhaustive.
- Voltage and Fault Current: Confirm the system voltage (e.g., 480V) and—this is critical—the available fault current at the MCC’s location. This ensures your short-circuit protection is up to the task.
- Enclosure Rating: Match the NEMA enclosure type (like NEMA 1, 12, or 4X) to the actual environment. Is it a clean room or a washdown area?
- Component Types: What kind of starters do you need? Specify whether they should be simple across-the-line, soft starters, or even fully integrated Variable Frequency Drives.
- Communication Needs: If you're going for an Intelligent MCC, you need to define the communication protocol (EtherNet/IP, for example) so it can talk to your plant’s PLC or DCS.
Installation Best Practices
Once your shiny new MCC arrives on site, a meticulous installation is absolutely essential for both safety and performance. This is not the place to cut corners. A proper install means every connection is secure and every control circuit functions exactly as designed before the system goes live.
Key steps for a solid installation include:
- Proper Grounding and Bonding: This is the single most critical safety step. A solid grounding system is non-negotiable for protecting people and equipment from electrical faults.
- Torque Verification: Don't just "hand-tighten" it. Use a calibrated torque wrench to tighten every power connection—from the main bus bars to individual bucket stabs—to the manufacturer’s exact specifications. Loose connections are a leading cause of overheating and catastrophic failure.
- Control Logic Verification: Before you even think about energizing the motors, do a point-to-point checkout of all control wiring. Make sure start/stop commands, safety interlocks, and sensor inputs work flawlessly.
Proactive Maintenance for Longevity
Finally, a consistent preventive maintenance program is what will maximize your MCC’s lifespan and stop those dreaded unplanned outages. An MCC that's just installed and forgotten is a ticking time bomb.
Proactive maintenance transforms your MCC from a potential liability into a reliable asset. It’s the difference between scheduling a quick inspection and dealing with a catastrophic, middle-of-the-night shutdown.
Implement a maintenance schedule that includes these core activities:
- Annual Thermal Imaging: Use an infrared camera to scan the MCC while it's under load. This non-invasive check is brilliant for spotting hot spots from loose connections or failing components long before they become a major problem.
- Routine Cleaning: Keep the inside of the MCC free of dust and contaminants. Grime can compromise insulation and lead to short circuits.
- Component Testing: Periodically test the mechanical operation of your circuit breakers and the trip function on overload relays. You need to know they’ll work when you need them most.
Got Questions About MCCs? We've Got Answers.
Even after you've got the basics down, a few specific questions always seem to pop up about Motor Control Centers. Think of this as your quick-reference guide to tackle those common "what if's" and "how does that work?" moments.
What's the Real Difference Between an MCC and a Switchboard?
It's easy to get these two mixed up since they both sit in a control room and distribute power, but their jobs are fundamentally different. A switchboard is like the main water line coming into a building—its job is to take one massive electrical feed and split it into smaller circuits to power everything from lights to outlets across the facility.
An MCC, on the other hand, is a specialist. It’s purpose-built to centralize the control and protection of all your electric motors. It’s packed with dedicated motor starters and overload relays, all neatly organized into those iconic pull-out "buckets." You just won't find that kind of motor-specific setup in a standard switchboard.
Why Do MCC Buckets Need to Be Withdrawable?
The slide-in, slide-out design of MCC buckets is a massive win for both safety and uptime. It’s a genius feature that lets you physically pull a single motor control unit out, completely disconnecting it from the live electrical bus, without having to kill power to the entire MCC.
In any plant where downtime costs a fortune, this modularity is everything. You can perform maintenance, troubleshoot a problem, or swap out a faulty unit for one motor while every other process keeps humming along. It drastically cuts downtime and, more importantly, makes the work a whole lot safer for your technicians.
What is an arc-resistant MCC? Think of it as a fortified safety system. It's engineered to contain and redirect the raw, violent energy of an arc flash explosion, channeling the blast away from people to prevent life-threatening injuries.
Can You Add a VFD to an Existing MCC?
Absolutely. Dropping a Variable Frequency Drive (VFD) into an existing MCC is a really common and effective upgrade. You can do this by either installing the VFD into a brand-new bucket built to fit the MCC or by retrofitting a bucket that used to hold an old starter.
But hold on—it's not quite a simple plug-and-play job. You've got to think through a few key things first:
- Physical Space: Is the bucket actually big enough to hold the VFD and all its necessary bits and pieces?
- Heat & Ventilation: VFDs can throw off a lot of heat. You have to make sure the enclosure has enough airflow to keep the drive from cooking itself.
- Bus Capacity: Can the MCC's main electrical bus handle the power draw? And what about the potential for harmonic distortion that VFDs can introduce?
It's always a good idea to bring in a qualified engineer to make sure the integration is done safely and correctly.
What Does "Arc-Resistant" Actually Mean?
An arc-resistant MCC is all about surviving the worst-case scenario: a catastrophic electrical explosion called an arc flash. These units are built like tanks with heavily reinforced doors, specialized latches, and carefully designed vents.
The whole point is to contain and redirect the immense pressure and superheated plasma from an arc flash. The design funnels that explosive force up and away from anyone standing in front of the gear, dramatically reducing the risk of severe injury or death when you're working with high-fault currents.
