A harmonic filter for VFD applications is a piece of hardware that cleans up the electrical “noise” that Variable Frequency Drives inevitably create. Think of it as noise-canceling headphones for your entire power system, making sure sensitive equipment runs smoothly and preventing damage from these electrical disturbances.
Why VFDs Pollute Your Power (and How Filters Clean It Up)
Variable Frequency Drives (VFDs) are the heroes of industrial efficiency. They give engineers incredibly precise control over motor speeds, saving a ton of energy and fine-tuning processes. But this control comes with a side effect: electrical pollution, officially known as harmonic distortion.
To get a picture of what's happening, imagine your facility's power is a perfectly smooth, clean river flowing from the utility.
A VFD does its job by taking this clean alternating current (AC), chopping it up into direct current (DC), and then rapidly switching it back into a simulated AC waveform to control the motor. This constant, high-speed switching is like dropping a bunch of disruptive dams and turbines into your once-pristine river. The flow becomes choppy, chaotic, and full of turbulent waves.
These electrical "waves" are harmonics.
Harmonics: More Than Just a Nuisance
This harmonic distortion isn't just a minor issue; it's a real threat to your plant's stability and reliability. When this "dirty power" starts circulating through your electrical network, it triggers a whole host of problems that are often tricky to diagnose.
- Equipment Overheating: Harmonics force extra current through transformers, wiring, and motors. This generates excess heat that can cook components from the inside out, leading to premature failure.
- Nuisance Tripping: Sensitive electronics, like circuit breakers and even other VFDs, can misinterpret this distortion as a genuine fault. The result? Unexpected shutdowns and expensive downtime.
- Data Corruption: Your PLCs, computers, and other digital controllers rely on clean power. When the supply is distorted, you can see unexplained errors and corrupted data.
- Reduced Equipment Lifespan: The constant stress from harmonic currents significantly shortens the operational life of just about everything connected to the system.
Measuring the Mess with Total Harmonic Distortion (THD)
To put a number on this electrical chaos, we use a metric called Total Harmonic Distortion (THD). It’s a straightforward measurement that compares the distorted waveform in your system to a pure, clean sine wave. High THD levels are a red flag, telling you that your system is suffering from serious harmonic pollution.
This is where a harmonic filter for VFD systems becomes absolutely essential. It’s specifically engineered to smooth out those chaotic waves right at the source—the drive itself. By filtering out these damaging harmonics, it protects every single piece of equipment downstream. You can get a refresher on how these drives work in our guide to VFD basics.
The operational impact of installing a filter is immediate and significant.
Operational Impact With vs Without a Harmonic Filter
The table below breaks down the real-world differences you can expect to see in your system's performance.
| System Characteristic | VFD Without Harmonic Filter | VFD With Harmonic Filter |
|---|---|---|
| Power Quality | Poor; high Total Harmonic Distortion (THD) | Excellent; low THD (typically <5%) |
| Equipment Temperature | Transformers, motors, and cables run hotter | Components operate at normal, cooler temperatures |
| System Reliability | Prone to nuisance tripping and unexpected shutdowns | Stable and reliable with minimized downtime |
| Energy Efficiency | Lower; energy is wasted as heat (I²R losses) | Higher; system runs more efficiently without waste |
| Component Lifespan | Reduced due to thermal and electrical stress | Extended operational life for all connected gear |
| Compliance | Likely fails to meet IEEE 519 standards | Meets or exceeds IEEE 519 and other utility standards |
As you can see, the choice is pretty clear. Leaving harmonics unchecked puts your entire operation at risk, while adding a filter is a direct investment in stability and longevity.
With VFDs being so common in industrial and commercial settings—often in robust three-phase power installations—dealing with harmonics is no longer an option. It's a necessity. The global market for these filters is growing fast as more industries prioritize power quality. Installing a filter isn't just an upgrade; it’s a foundational step for building a reliable, modern facility.
Exploring Different Types of Harmonic Filters
Picking the right harmonic filter for a VFD isn't a one-size-fits-all deal. Different problems on the factory floor call for different tools, and the world of harmonic mitigation really boils down to three core technologies: Passive, Active, and Hybrid filters.
Each one takes a unique swing at cleaning up your power, and each has its own strengths and sweet spots. Getting a handle on how they work is the first step to choosing a solution that actually fits your plant's needs, budget, and performance targets. Let's break them down.

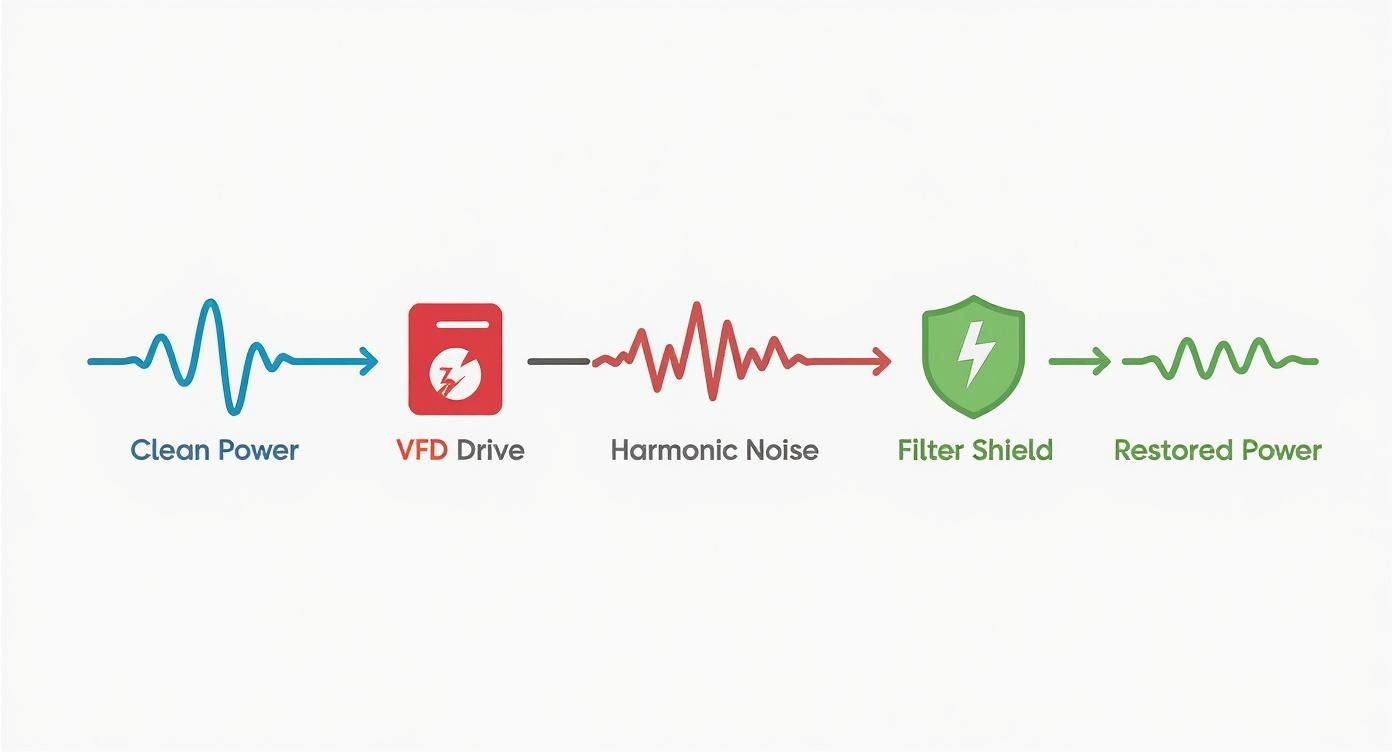

The infographic below gives a great visual of this process. It shows the journey of clean power from the utility, how it gets "dirtied" by the VFD, and then how a filter steps in to clean it back up.
You can see how the filter acts like a bouncer, stopping that jagged harmonic noise and only letting the smooth, clean sine wave through to the rest of your equipment.
Passive Harmonic Filters: The Rugged Workhorse
Passive filters are the old guard, the original, time-tested solution for taming harmonic distortion. Think of them like a big acoustic panel in a recording studio, specifically built to absorb one predictable, annoying sound frequency. They’re built from a simple, tough combination of inductors (reactors) and capacitors.
This circuit is precisely "tuned" to target a specific harmonic frequency. Most often, that's the 5th harmonic, which is the biggest troublemaker created by common six-pulse VFDs.
When the distorted current from the drive hits the filter, this tuned circuit creates an easy, low-resistance path. It essentially traps and soaks up those specific harmonic frequencies, stopping them from polluting your entire electrical system.
Key Takeaway: A passive filter is a fixed solution. It's engineered to solve a known, consistent harmonic problem, making it a fantastic and cost-effective choice for dedicated loads where the harmonic profile stays pretty much the same day in and day out.
Their simple, bulletproof design—no fancy electronics—makes passive filters incredibly reliable. They require almost no maintenance, making them a true "set it and forget it" solution in the right application.
Active Harmonic Filters: The Smart Solution
If a passive filter is an acoustic panel, then an active harmonic filter (AHF) is a pair of high-tech, noise-canceling headphones. It doesn't just block a fixed frequency; it actively listens to the noise and creates an exact opposite sound wave to wipe it out.
An AHF uses precise sensors to constantly monitor the current on your electrical line. Its brain—an internal processor—analyzes the harmonic distortion in real-time and instantly injects a corrective, opposing current back into the system.
This "anti-harmonic" current perfectly cancels out the unwanted distortion, leaving you with a pristine sine wave.
- Dynamic Correction: They adapt on the fly as loads and the harmonic mix change.
- Broad Spectrum: They can kill multiple harmonic orders at once (like the 5th, 7th, 11th, and beyond).
- Multi-Functional: Many can also fix other power quality headaches, like poor power factor and load imbalances.
This smart, adaptive capability makes an active harmonic filter for VFD systems the go-to for facilities with a bunch of non-linear loads, fluctuating production cycles, or super-strict power quality demands, like what you’d find in a data center or hospital.
Comparing Harmonic Filter Technologies
To make the choice clearer, let's put these technologies side-by-side. Each has a distinct role, and seeing their pros and cons laid out can help pinpoint the best fit for your specific challenge.
| Filter Type | Correction Method | Best For | Pros | Cons |
|---|---|---|---|---|
| Passive | Uses inductors and capacitors to create a low-impedance path that "traps" specific harmonic frequencies. | Single, consistent loads where the harmonic profile is predictable (e.g., dedicated pumps, fans). | – Very reliable and robust – Lower initial cost – No complex electronics – Minimal maintenance |
– Fixed correction for specific harmonics – Can create resonance issues if not sized correctly – Less effective on changing loads – Can be bulky |
| Active | Injects an opposing, corrective current to actively cancel out a broad spectrum of harmonic distortion. | Facilities with multiple, varied, or dynamic non-linear loads (e.g., machining centers, hospitals). | – Adapts to changing loads in real-time – Corrects a wide range of harmonics – Can also improve power factor – Highly precise |
– Higher initial cost – More complex, with active electronics – Requires more skilled commissioning |
| Hybrid | Combines a passive filter for the main harmonic (e.g., 5th) with a smaller active filter for the rest. | Large industrial applications needing high performance without the full cost of a purely active solution. | – High performance at a better price point – Efficiently handles heavy distortion – Balances cost and capability |
– More complex than a standalone passive filter – Integration of two technologies requires careful design |
Ultimately, this table shows there's no single "best" filter—only the best filter for the job at hand.
Hybrid Harmonic Filters: The Best of Both Worlds
Just like the name says, a hybrid harmonic filter cherry-picks the best features of both passive and active tech and rolls them into one powerful package. This approach gets you top-tier filtering more efficiently and often at a better price than a full-blown active solution.
Here’s how it works: a hybrid system uses a passive component to do the heavy lifting on one specific, high-magnitude harmonic—again, usually the 5th. This frees up a smaller, more nimble active component to focus its energy on mopping up all the other, more complex harmonic distortions.
By letting the passive filter handle the biggest bully, the active part of the system can be sized down, which makes the whole solution more affordable. This combined strategy is a real winner in large-scale industrial plants where performance is non-negotiable but the budget still matters. You can learn more about how VFDs fit into different systems by exploring our resources on variable frequency drives.
At the end of the day, each of these filter technologies offers a solid path to cleaner power. The right choice is all about matching the tool to the unique electrical environment of your facility, the nature of your VFD loads, and what you’re trying to achieve.

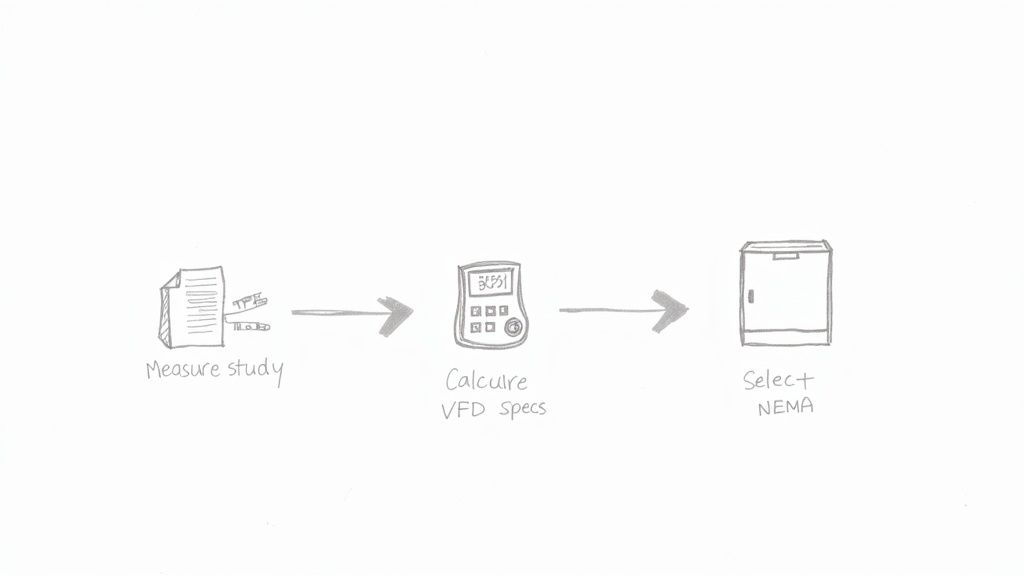

How to Select and Size Your Harmonic Filter
Choosing the right harmonic filter for a VFD isn't like grabbing a part off the shelf. It's an engineering task, plain and simple. Getting it right means finding that sweet spot between performance, cost, and compliance—solving your power quality headaches without breaking the bank.
If you over-engineer the solution, you're just wasting money. But if you under-engineer it, you’re leaving your whole facility exposed to the problems you were trying to fix. The process has to start with a deep dive into your electrical system and the VFDs causing the trouble in the first place.
Start with a Power System Analysis
Before you can fix the problem, you have to know exactly what you're up against. A power system analysis is the non-negotiable first step. Think of it as a diagnostic for your electrical network—it gives you the hard data you need to make the right call.
It's a lot like a doctor ordering lab work before writing a prescription. A technician will hook up a power quality analyzer to measure the existing distortion, paying close attention to the Total Harmonic Distortion (THD). This shows you which harmonic frequencies are the biggest offenders and just how bad they are.
A detailed analysis is your roadmap. It shows you the starting line (your current THD) and the finish line (meeting standards like IEEE 519). With that map, you can pick the most direct and cost-effective route to clean power.
Trying to pick a filter without this data is just a shot in the dark. The analysis gives you the proof you need to justify the investment and guarantee the filter you choose will actually work.
Decode VFD and Motor Specifications
Once you have your system's harmonic profile, it’s time to zero in on the source: the VFD and the motor it’s running. Every piece of information here is a clue that helps you pick the perfect filter.
You’ll need to pull together a few key specs:
- VFD Horsepower (HP) or Kilowatt (kW) Rating: This is your main sizing number. It tells you how much power the drive uses and, by extension, how much harmonic noise it's likely to create.
- Full Load Amps (FLA): This is critical. The filter has to be rated to handle the motor's full current draw, day in and day out, without skipping a beat.
- System Voltage: Make sure the filter's voltage rating is a match for your system, whether it’s 480V, 600V, or something else. A mismatch is a recipe for instant failure.
- VFD Pulse Number: The vast majority of modern drives are 6-pulse VFDs. These are known for generating 5th, 7th, 11th, and 13th order harmonics, so you'll want a filter tuned to knock those down.
Putting this data together with your power system analysis gives you a complete picture. It allows engineers to accurately model the system and spec a filter that can handle the load. Taming those harmonic currents also has a nice side effect of cutting down on energy waste; you can learn more about how VFDs impact your power bill by reading about VFD energy savings on our blog.
Consider Environmental and Physical Factors
Even a perfectly sized filter can fail if you stick it in the wrong environment. It’s easy to overlook these physical factors, but they can dramatically shorten a filter's lifespan.
First up is the ambient operating temperature. Harmonic filters throw off their own heat. If the room they’re in is already hot, the unit might need to be derated or beefed up with extra cooling. Likewise, installations at high altitude have thinner air, which makes cooling less effective and often requires a bigger unit.
You also have to think about the right enclosure. The NEMA (National Electrical Manufacturers Association) rating tells you how well an enclosure protects the components inside from the surrounding environment.
- NEMA 1: Your standard indoor enclosure for clean, dry spots.
- NEMA 3R: Built for the outdoors, ready to stand up to rain and snow.
- NEMA 4/4X: Watertight and tough enough for washdown areas. The 4X is stainless steel for fighting off corrosion.
- NEMA 12: The go-to for dusty, dirty industrial shop floors where you might have dripping fluids.
Picking the right NEMA rating isn’t optional—it's a must for keeping your people safe and your equipment running for the long haul.
When you're installing a harmonic filter for a VFD, it’s not always just about cleaning up your own power. More often than not, it's about staying on the right side of the power quality standards set by your utility. The big one you’ll hear about constantly is IEEE 519. This is the rulebook that governs your relationship with the grid, making sure your plant’s electrical "noise" doesn't pollute the power for everyone else.
Think of the grid like a shared community lake. Everyone draws clean water from it. But VFDs, without filters, are like pipes dumping muddy water back in. IEEE 519 is the environmental agency for that lake, ensuring everyone's a good neighbor and keeps the water clean.
And this isn't just a friendly suggestion. If you ignore it, utilities can hit you with some serious penalties, force you into costly upgrades, or in extreme cases, even pull the plug on your facility.
Understanding the Point of Common Coupling
The entire world of IEEE 519 revolves around one specific spot: the Point of Common Coupling (PCC). This is simply the physical point where your facility plugs into the utility's grid. For most of us, that's the main electrical meter.
This is where the utility takes its measurements. They aren’t all that concerned with the harmonic chaos happening inside your four walls—their focus is on what you're exporting back to their grid. That little detail is everything, because it shapes your entire game plan for harmonic filtering.
Key Insight: Your real goal is to get a harmonic filter that cleans things up before the power hits the PCC. You need to meet the IEEE 519 limits at that specific point, so your internal VFDs don't become someone else's problem.
Essentially, the filter's job is to trap the harmonic distortion your drives create, keeping it contained within your facility so it never makes it out to the street.
What IEEE 519 Limits Actually Mean
The standard itself is a pretty dense read, full of charts and technical jargon. But what it asks of you boils down to two main limits, measured right there at the PCC:
- Total Harmonic Current Distortion (THDi): This is the big one. It caps the amount of distorted current your plant can push back into the grid. The exact percentage allowed depends on your service size, but for most industrial plants, the magic number is keeping THDi below 5%.
- Total Harmonic Voltage Distortion (THDv): This limits the voltage distortion on the utility’s lines. While your VFDs create current distortion, that current flows through the grid's impedance and can cause voltage distortion. This rule ensures you don't mess with the grid's stability.
Getting under that <5% THDi target is almost always the main reason for installing a harmonic filter. A good filter is specifically designed to take a system with messy, unfiltered harmonics—often in the 30-40% THD range or even higher—and wrestle it down into that compliant, clean zone.
The Importance of UL Listings and Other Certifications
Beyond just satisfying the utility, you have to think about safety and reliability. This is where certifications like a UL Listing (Underwriters Laboratories) come in. A UL stamp isn't just a sticker; it's proof from an independent third party that the filter has been rigorously tested and meets strict electrical safety standards.
When you see a UL-listed filter, you know it's been designed and built properly and is safe for its intended job. For anyone specifying equipment—whether you’re an OEM, a system packager, or a plant engineer—insisting on UL-listed components is a non-negotiable. It’s about covering your bases for code compliance, protecting your people, and reducing your liability. It's the seal of approval that says this equipment won't be the source of your next headache.
Getting Filter Installation and Commissioning Right
You can pick the perfect harmonic filter for a VFD, but if the installation is botched, you’ve wasted your time and money. Proper installation and commissioning aren't just boxes to check; they're the critical final steps that ensure the filter actually does its job, protecting your equipment and keeping your power clean from day one.
Getting this right is all about precision and process. It’s what separates a successful project with documented results from a frustrating, endless troubleshooting headache. A little extra care here pays massive dividends in long-term reliability and performance.
Critical Installation Details
Where and how you physically install the filter is foundational to its success. A few key details can make a night-and-day difference in how well it contains harmonic distortion and operates safely.
-
Location, Location, Location: The filter needs to be as physically close to the VFD as possible. Period. This simple rule minimizes the length of cable carrying the "dirty," high-harmonic current, effectively trapping that electrical noise at the source before it pollutes the rest of your facility's power system.
-
Wiring and Grounding are Non-Negotiable: Follow the manufacturer's wiring diagrams to the letter. Proper grounding isn't just a safety formality; it’s absolutely essential for the filter to function. A weak or improper ground connection can render a filter completely useless—or even create new power quality issues.
-
Don't Let It Cook: Harmonic filters generate heat as they work, absorbing and dissipating the energy from nasty harmonic currents. You have to make sure the enclosure has proper ventilation or cooling, just as the manufacturer specifies. Overheating is the number one killer of filters, causing premature failure of internal components like capacitors.
The Commissioning Process: A Step-by-Step Guide
Once the filter is physically installed, it's time for commissioning. This is where you prove it works and officially sign off on the project. Think of it as the final quality control check before you turn the system over to operations.
-
Pre-Flight Safety Checks: Before you even think about throwing the switch, do a thorough visual inspection. Look for any loose connections, double-check that the wiring matches the schematics, and confirm the enclosure is secured and grounded correctly. Make sure you have the required clearances for airflow.
-
Initial Power-Up and Monitoring: Start by energizing the system with no load or a very light load. Listen for any weird sounds, check for strange smells, or watch for any immediate temperature spikes. This kind of "soft start" lets you catch any major problems before the system is under full operational stress.
-
Verification with a Power Quality Analyzer: This is the moment of truth. You need hard data to prove the filter is working, and that means measuring the Total Harmonic Distortion (THD).
The heart of any commissioning process is the data. By taking "before" and "after" measurements with a power quality analyzer right at the Point of Common Coupling (PCC), you create undeniable proof that the harmonic filter is delivering and bringing your system into compliance with standards like IEEE 519.
A "before" reading might show a current THD of a whopping 35%. After the filter is commissioned, that number should be well below the 5% target. This data justifies the entire project, validates the investment, and gives you a solid baseline for any future maintenance or troubleshooting.
Without these measurements, you're just guessing.

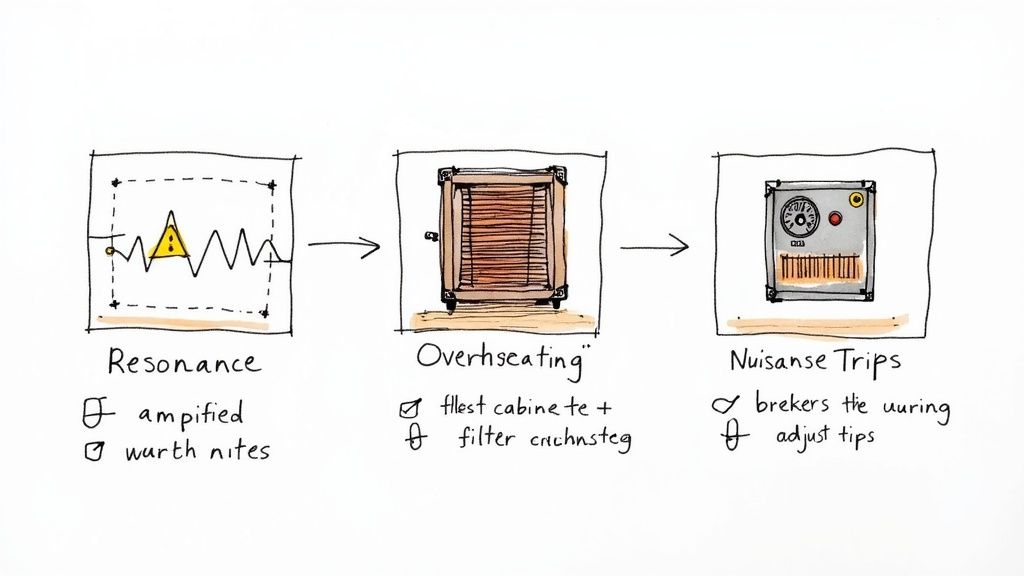

Common Harmonic Filter Problems and How to Fix Them
Even the best-laid plans can go sideways. A perfectly specified harmonic filter for a VFD can still run into trouble out in the real world. Knowing what to look for is half the battle, helping you troubleshoot faster, slash downtime, and protect your gear.
The single most dangerous issue you can face is electrical resonance. It’s also the most misunderstood. This gremlin usually pops up with passive filters when their electrical personality clashes with the power system's own impedance. Instead of squashing harmonics, the filter starts to sing along, amplifying a specific harmonic frequency to catastrophic levels.
When this happens, you get wild voltage swings that can fry capacitors and cause a total system meltdown. The only true fix is prevention—a proper system analysis before you ever install. But if you even suspect resonance is happening, kill the power immediately and get an engineer on the phone.
Overheating and Nuisance Tripping
Two classic symptoms of a struggling filter are overheating and nuisance tripping. They're often related and are basically your system's way of telling you something is seriously wrong. An overheating filter is a dead giveaway that it's choking on more harmonic current than it was built to handle.
There are a few usual suspects:
- System Creep: Someone added a few more VFDs or other harmonic-producing loads to the circuit after the filter was installed.
- Bad Sizing: The filter was undersized from day one and just can't keep up with the drive's actual harmonic garbage.
- No Room to Breathe: The filter is crammed into a hot panel with no ventilation, so it can't shed the heat it generates.
Nuisance tripping is what happens when the chaotic, distorted current waveforms trick your breakers. The breaker sees the jagged current, thinks it's a short circuit, and does its job—even though there's no real fault.
Troubleshooting Tip: Always start with the simple stuff. Before you break out the power analyzer, just check the filter's vents. Is there dust buildup? Is the cabinet door blocked? You’d be surprised how often a five-minute fix solves a "major" problem.
Steps for Effective Troubleshooting
When you've got a filter that isn't pulling its weight, don't just start swapping parts. A little structured diagnosis goes a long way.
- Go Back to the Paperwork: Dig up the original design specs. Was the filter actually sized correctly for the VFD's horsepower and full-load amps?
- Get New Readings: Hook up a power quality analyzer and measure the current THD both before and after the filter. The numbers don't lie—they'll tell you exactly how much work the filter is (or isn't) doing.
- Check Every Connection: Get a wrench and a torque screwdriver. Check for any loose or corroded terminals on the filter, the VFD, and especially the ground. A single bad connection can bring the whole system to its knees.
By methodically working through these common issues, you can turn a failing harmonic mitigation system back into a reliable asset that protects your plant for the long haul.
Common Questions About Harmonic Filters for VFDs
When you start digging into the details of using a harmonic filter for VFD systems, a handful of practical questions always come up. Whether you're an engineer designing a system or part of the team keeping it running, getting clear answers is what really matters. Let's tackle some of the most common things we hear from people in the field.
These are the questions that bridge the gap between theory and the real world—from whether you really need a filter to how long you can expect one to last.
Do All VFDs Require a Harmonic Filter?
Not every single time, but in most industrial settings, it's a very smart move. The need goes from "highly recommended" to "absolutely critical" the moment you have sensitive electronics like PLCs on the same line, strict power quality rules (think hospitals or data centers), or a whole bunch of VFDs working together.
The only way to know for sure is to get the data. A power system analysis is the right tool for the job. It measures the harmonic distortion you already have and tells you if you're flirting with non-compliance or setting yourself up for equipment failure. It makes the decision black and white.
Expert Insight: Here’s a good way to think about it. A single VFD running a simple, isolated pump might not cause any trouble. But as soon as you have a facility full of drives, all that harmonic "noise" adds up. A filter becomes essential to keep the whole system stable and prevent those weird, intermittent problems that are so tough to track down.
Can a Harmonic Filter Improve Energy Efficiency?
Yes, and the savings can be significant. While knocking out harmonics is their main job, improving energy efficiency is a fantastic side effect. Harmonics are basically wasted energy causing extra heat to build up in your transformers, wiring, and motors.
By filtering that junk off the line, the VFD system doesn't have to draw as much current from the utility. One case study on a multi-VFD system showed that adding a passive harmonic filter cut energy use by a whopping 12.7%. Less heat loss means a lower electricity bill and a more efficient operation, plain and simple.
What Is the Typical Lifespan of a Harmonic Filter?
A well-built passive harmonic filter for a VFD is a true long-term investment. You can easily expect it to last 15-20 years, and often even longer. The guts of these things are just tough-as-nails inductors and capacitors—no moving parts, nothing to wear out. They're built to last.
Active filters have a similar operational lifespan, but they do have more electronics inside, like control boards and cooling fans. Those components might need some maintenance or replacement down the road to keep the filter running at its best.
Where Is the Best Place to Install a Harmonic Filter?
This one is critical: get the filter as close to the VFD as you possibly can. The reason is simple—you want to stop the harmonic noise right at the source.
Placing the filter right next to the drive keeps the "dirty," high-harmonic current contained in the shortest possible length of cable. This is huge, because it prevents that electrical noise from spreading all over your facility's power network and causing problems for every other piece of equipment plugged into it.
