Picking the right circuit breaker isn't just a small detail—it's one of the most important decisions you can make for the safety, uptime, and protection of your entire industrial operation. The options are vast, ranging from the tiny Miniature Circuit Breakers (MCBs) you’d find inside a control panel to the massive Sulfur Hexafluoride (SF6) units protecting a substation. Each one is a specialized piece of engineering, built for a specific job at a specific voltage.
The Unsung Heroes of Your Electrical System
It's easy to think of circuit breakers as simple on/off switches, but they’re much more than that. Think of them as the vigilant guardians of your electrical system. Their one and only job is to constantly watch the flow of current and, in a split second, shut things down when a dangerous overload or a dead short occurs.
Without them, a simple fault could cook the wiring in your walls, fry a million-dollar piece of machinery, and spark a catastrophic fire or create a lethal shock hazard.
This guide is here to cut through the jargon and demystify the world of industrial circuit breakers. We'll start with the common components you’ll see every day in a UL-listed control panel and work our way up to the heavy-duty gear that keeps entire facilities online. When you understand the why behind each design, you can start making smarter, safer choices.
What We're Going to Cover
We'll walk through the practical differences between the breaker technologies you're most likely to encounter. We’ll look at how they work, where they shine, and what really matters when you're choosing one over another. This is a roadmap for any professional who needs these devices to protect people and equipment.
Here's what's on the agenda:
Low-Voltage Workhorses: We'll dive into the roles of MCBs, Molded Case Circuit Breakers (MCCBs), and the specialty protectors for motors and personnel safety (GFCI/AFCI).
Medium and High-Voltage Defenders: Then, we’ll explore the tech behind Air Circuit Breakers (ACBs), Vacuum Circuit Breakers (VCBs), and SF6 breakers—the big guns used in switchgear and substations.
Decoding the Specs: We'll translate technical data like interrupting ratings and trip curves into practical knowledge you can actually use.
Choosing the Right Breaker for the Job: Finally, we’ll offer clear guidance on how to select the correct breaker for motors, control systems, and main power distribution.
A circuit breaker is far more than a switch. It's a precision safety device engineered to be the perfect match for the panel, the wire, and the load it protects. Its ability to automatically kill the power during a fault is your first and best line of defense against an electrical disaster.
By the time we're done, you’ll have a solid framework for choosing the right breaker types to keep your operations running safely and smoothly, without those costly, unplanned shutdowns. Let's start by getting into the most common protectors out there: the low-voltage circuit breakers that are the true backbone of modern power and automation systems.
Getting to Know Low Voltage Circuit Breakers
When you look inside any electrical panel, you're looking at the unsung heroes of our modern world: low voltage circuit breakers. These are the absolute workhorses of electrical safety, found everywhere from the panel in your home to the most complex industrial machinery.
They are the first line of defense against overloads and short circuits, and really understanding what makes each type tick is a must for designing safe, reliable systems.
The two big players you'll run into constantly are the Miniature Circuit Breaker (MCB) and the Molded Case Circuit Breaker (MCCB). While they both exist to cut power when things go wrong, they’re built for very different scales. Think of it this way: an MCB is like a security guard for a single storefront, while an MCCB is the entire security team for a massive shopping mall.
Miniature vs. Molded Case Breakers
A Miniature Circuit Breaker (MCB) is a simple, compact device you can't adjust. They're typically rated for currents up to 125 amps and have a relatively low interrupting capacity. This makes them perfect for protecting final branch circuits—the ones that power your lights, outlets, and small control components inside a UL-listed panel.
Now, the Molded Case Circuit Breaker (MCCB) is a whole different beast. It’s far more robust, housed in a tough molded casing, and often features adjustable trip settings. MCCBs are built to handle serious current, with ratings that can start at 15 amps and climb all the way to 3,000 amps or more.
With their high interrupting ratings, they are the go-to choice for protecting main service entrances, heavy-duty distribution feeders, and large motor circuits where a fault could unleash a massive amount of energy.
A breaker’s interrupting capacity is its single most important safety rating. It tells you the maximum fault current the device can handle without literally blowing itself apart. Sizing this incorrectly isn't just a code violation—it's a recipe for a catastrophic failure, fire, or explosion.
Specialized Breakers for Unique Jobs
Beyond the everyday MCB and MCCB, there's a whole world of specialized breakers designed to handle very specific threats. These devices go beyond basic overcurrent protection, adding critical layers of safety for both people and expensive equipment.
To help you get a quick handle on the most common types, here’s a simple breakdown.
Quick Comparison of Low Voltage Breaker Types
This table offers a side-by-side comparison of common low voltage breakers, highlighting their typical applications, current ranges, and key protective functions to simplify selection.
Breaker Type
Typical Ampere Range
Primary Protection
Common Industrial Application
MCB
0.5A – 125A
Overload & Short Circuit
Final branch circuits, control panels, lighting
MCCB
15A – 3,000A
Overload & Short Circuit
Main disconnects, feeders, large motors
MCP
3A – 1,200A
Short Circuit (Magnetic) Only
Part of a "combination starter" for motors
GFCI
5mA – 30mA Trip
Ground Fault (Personnel)
Wet locations, outdoor equipment, construction sites
AFCI
Varies
Arc Fault (Fire Prevention)
Protects wiring in walls from arcing faults
This at-a-glance view shows that choosing the right breaker means looking beyond just the amp rating and matching the device's protective features to the specific hazards of the circuit.
Motor Circuit Protectors
Motors are a special kind of challenge. When a motor kicks on, it briefly draws a massive inrush of current—often 5 to 8 times its normal running load. A standard breaker would see this spike as a dangerous short circuit and trip instantly, leading to constant, frustrating shutdowns.
That's precisely why the Motor Circuit Protector (MCP) was invented. An MCP is a magnetic-only breaker; it has no thermal protection for overloads. Its magnetic trip is set high on purpose, allowing that huge starting current to flow without issue. Its only job is to provide instantaneous protection against a massive short circuit.
Because it doesn't protect against overloads, an MCP can't be used alone. It must be paired with two other components to create a complete, UL-listed motor starter:
Overload Relay: This device watches the motor's running current and trips if it senses a sustained overload, saving the motor windings from burnout.
Contactor: This is the heavy-duty switch that turns the motor on and off, getting its signals from the overload relay.
This three-part system, known as a "combination starter," delivers tailored protection that a one-size-fits-all MCCB just can't provide.
Breakers That Save Lives and Property
Finally, we have the breakers that are all about protecting people from electricity's most immediate dangers.
Ground Fault Circuit Interrupters (GFCIs): A GFCI is like a hypersensitive watchdog. It constantly measures the current going out on the hot wire and coming back on the neutral. If it detects a tiny mismatch—as little as 4-6 milliamperes—it assumes that current is leaking to the ground, possibly through a person. In a fraction of a second, it cuts the power, preventing a potentially fatal shock. It's why they are mandated in kitchens, bathrooms, garages, and outdoor receptacles.
Arc Fault Circuit Interrupters (AFCIs): While a GFCI protects against shock, an AFCI protects against fire. It’s designed to detect a different kind of danger: hazardous electrical arcs. These tiny sparks can happen in damaged extension cords, loose wire connections, or old wiring inside walls. By recognizing the unique electronic noise of a dangerous arc, an AFCI shuts down the circuit before the arc can generate enough heat to ignite nearby materials. It’s a level of fire prevention a standard breaker simply can't offer.
Exploring Medium and High Voltage Breaker Technology
Once we step out of the world of control panels and branch circuits, things get a lot bigger. We're now in the realm of switchgear and substations, where medium and high voltage systems reign supreme. The fault currents here are massive, and a failure isn't just an inconvenience—it's a catastrophic event. The breakers designed for this environment are a completely different breed, engineered for immense power and decades of reliability.
The most traditional workhorse you'll find is the Air Circuit Breaker (ACB). These are the titans often used as the main incoming protection for an entire facility. ACBs are big, powerful, and built to be serviced. When the contacts separate under a fault, they use the surrounding air to extinguish the resulting electrical arc. Think of it as blowing out a candle with a powerful blast of air to separate the flame from its fuel.
Because of their durability and straightforward maintenance, ACBs have long been the standard for main switchboards, handling currents from 800A all the way up to 6,300A. But as technology marches on, smarter and more efficient ways to snuff out an arc have taken center stage.
The Power of a Vacuum
What if you could extinguish a fire by instantly sucking all the oxygen out of the room? It would vanish in a heartbeat. That’s the elegant principle behind the Vacuum Circuit Breaker (VCB). Instead of using air, a VCB’s contacts separate inside a permanently sealed vacuum interrupter.
A vacuum is an almost perfect electrical insulator. With virtually no molecules to ionize, the arc is extinguished with incredible speed as the contacts pull apart.
A Vacuum Circuit Breaker's sealed interrupter creates a superior dielectric environment, allowing it to quench an arc in just a few milliseconds. This rapid interruption minimizes contact erosion, dramatically extends the breaker's life, and slashes maintenance needs compared to old-school air breakers.
This incredibly efficient arc-quenching method delivers some serious real-world benefits:
Exceptional Longevity: VCBs can operate tens of thousands of times with little to no maintenance, thanks to minimal contact wear.
Compact Design: The efficiency of the vacuum interrupter means the entire breaker can be smaller and lighter.
Minimal Maintenance: There are no arc chutes to clean or complex air systems to service. VCBs have a much lower total cost of ownership over their lifetime.
These advantages have made VCBs the dominant technology in medium voltage applications today. They are a critical part of modern industrial power distribution, a fact reflected in their commanding market share.
Another advanced player in the medium and high voltage field is the Sulfur Hexafluoride (SF6) Circuit Breaker. SF6 is an inert, non-toxic gas that just happens to have outstanding dielectric strength and arc-quenching properties—far better than plain air.
When an SF6 breaker trips, its contacts separate within an environment filled with the gas. A small puff of that SF6 gas is directed at the arc, where it rapidly absorbs heat and free electrons. This effectively suffocates the arc, stopping it from re-igniting.
SF6 breakers are incredibly effective and can be designed for extremely high voltage ratings, which is why you see them so often in utility substations and massive industrial power systems. Their compact size and reliable performance are huge draws.
However, there’s a major catch with this technology. While SF6 is harmless to people, it's a potent greenhouse gas—over 23,000 times more effective at trapping heat in the atmosphere than carbon dioxide. Because of this, strict environmental regulations now govern the handling, recovery, and recycling of SF6 gas to prevent it from ever being released.
This environmental impact is a critical factor that engineers must weigh during selection. For many, the maintenance-free, environmentally benign nature of vacuum technology is simply a more attractive and future-proof solution.
How To Make Sense of Breaker Specifications and Standards
Choosing the right breaker involves more than just matching the amperage. To really protect your equipment and your people, you have to speak the language written on the side of every breaker—the technical specs and standards that define how it will perform under extreme stress. These numbers aren't just suggestions; they're the hard limits of what the device can safely handle.
Think of it this way: misinterpreting these specs is like sending a firefighter with a garden hose to a chemical plant fire. The tool has to match the threat. The specifications tell you exactly what kind of threat that breaker is built to conquer.
Interrupting Rating: The Ultimate Test
First up, and arguably most important, is the Interrupting Rating. You'll also see this called Ampere Interrupting Capacity (AIC) or simply kA (kiloamps). This is the breaker’s single most critical safety rating. It tells you the maximum fault current the breaker can shut down without, well, blowing itself apart.
Imagine a dam built to hold back a river. Its day-to-day job is managing the normal flow. But its true test is whether it can survive a once-in-a-century flood. The Interrupting Rating is that flood rating for a breaker. If the available fault current in your system exceeds the breaker's AIC, it will fail at the very moment you need it most.
Frame Size vs. Ampere Rating
Next, let's clear up two terms that often get mixed up: Frame Size and Ampere Rating.
Frame Size: This is the maximum continuous current that a breaker's physical housing, or "frame," is designed for. Think of it like a suitcase. A large suitcase can hold a lot of stuff, but you don't have to pack it completely full.
Ampere Rating (or Trip Rating): This is the actual current level where the breaker is set to trip. This is how much stuff you actually put inside the suitcase.
So, you could easily have a 250A frame breaker (the big suitcase) that’s fitted with a 150A trip unit (partially filled). This gives you flexibility down the road; you could swap in a 200A trip unit later without having to replace the entire breaker and its wiring. Getting this difference right is fundamental to designing smart, scalable electrical systems.
The image below gives a glimpse into the different technologies—like air, vacuum, and SF6 gas—used to extinguish the electrical arc inside a breaker. This arc-quenching ability is a huge factor in a breaker's interrupting capability.
Decoding Trip Curves
Not all overloads are the same, and neither are the trips. A breaker's trip curve defines how quickly it reacts to different levels of overcurrent. This is what lets you match the breaker’s response time to the load it’s protecting, preventing annoying nuisance trips while still guaranteeing safety.
For low-voltage breakers, you'll commonly run into these curves:
Type B: Trips at 3 to 5 times its rated current. This is for your sensitive, purely resistive loads like heating elements or basic lighting circuits.
Type C: Trips at 5 to 10 times its rated current. This is the all-rounder, a great general-purpose curve for most commercial and industrial gear with moderate startup currents.
Type D: Trips at 10 to 20 times its rated current. This one is built tough for things with a massive inrush current, like large motors, transformers, or welders. It gives them a moment to get up to speed without causing a false trip.
A Quick Word on Selective Coordination
In a big facility, you never want a small short circuit in one corner to trip the main breaker and plunge the whole plant into darkness. Selective coordination is the art of arranging breakers in series so that only the one closest to the fault opens up. This isolates the problem and keeps the rest of the operation humming. It's all about strategically choosing breakers with the right trip curves and delay settings.
The Importance of UL and IEC Standards
Finally, all these specs are tested and standardized by regulatory bodies. The two big names you'll see are UL (Underwriters Laboratories) in North America and IEC (International Electrotechnical Commission) everywhere else.
While they go about their testing a bit differently, the goal is identical: ensuring safety and performance. If you're installing equipment in the United States, a UL listing (like UL 489 for molded-case circuit breakers) is non-negotiable. It's your proof that the breaker has been put through the wringer and meets U.S. safety standards. Using a non-listed part isn't just a code violation—it’s a massive liability risk.
How to Select the Right Breaker for Your Application
Alright, now that we've covered the different types of breakers, let's get into the real work: choosing the right one for the job. This isn't just about matching an amp number on a spec sheet. It's a strategic choice that has a direct line to your plant's safety, uptime, and bottom line.
Think of it like picking the right tool. You wouldn't use a delicate screwdriver to break up concrete, and you definitely wouldn't use a sledgehammer for fine electronics. A circuit breaker has to be just as precisely matched to the load it’s protecting and the environment it lives in.
This decision-making process is all about understanding the trade-offs. Let’s walk through a few common industrial scenarios to see how this plays out in the real world.
Motor Protection: The MCP vs. MCCB Decision
Protecting a heavy-duty industrial motor presents one of the most common forks in the road for an engineer. Do you go with a dedicated Motor Circuit Protector (MCP) and a separate thermal overload relay, or do you opt for an all-in-one Molded Case Circuit Breaker (MCCB)?
The MCP & Overload Relay Combo: This is the high-precision route. An MCP is magnetic-only, meaning it's built specifically to ignore a motor's huge inrush current on startup while still giving you instant protection against a dead short. The separate thermal overload relay is then dialed in perfectly to the motor's full-load amps, protecting its windings from a slow burnout. It's a two-part system that offers incredibly specific and adjustable protection.
The All-in-One MCCB: An MCCB with an adjustable thermal-magnetic trip unit can certainly do the job. It bundles both overload and short-circuit protection into one convenient package. While it’s simpler to install, you often sacrifice some of the granular control you get with the dedicated MCP setup.
So, which is best? It really comes down to how critical the application is. For a high-value motor where exact overload protection is non-negotiable, the MCP/overload relay team is almost always the superior choice. For simpler, less critical motor loads, an appropriately sized MCCB is a perfectly good, cost-effective solution.
For decades, traditional mechanical circuit breakers have formed the backbone of industrial safety. They represent the highest market share category by breaker type, reflecting the continued industry reliance on this proven and reliable mechanical switching technology for critical applications. You can discover more insights about the global circuit breaker market on fortunebusinessinsights.com.

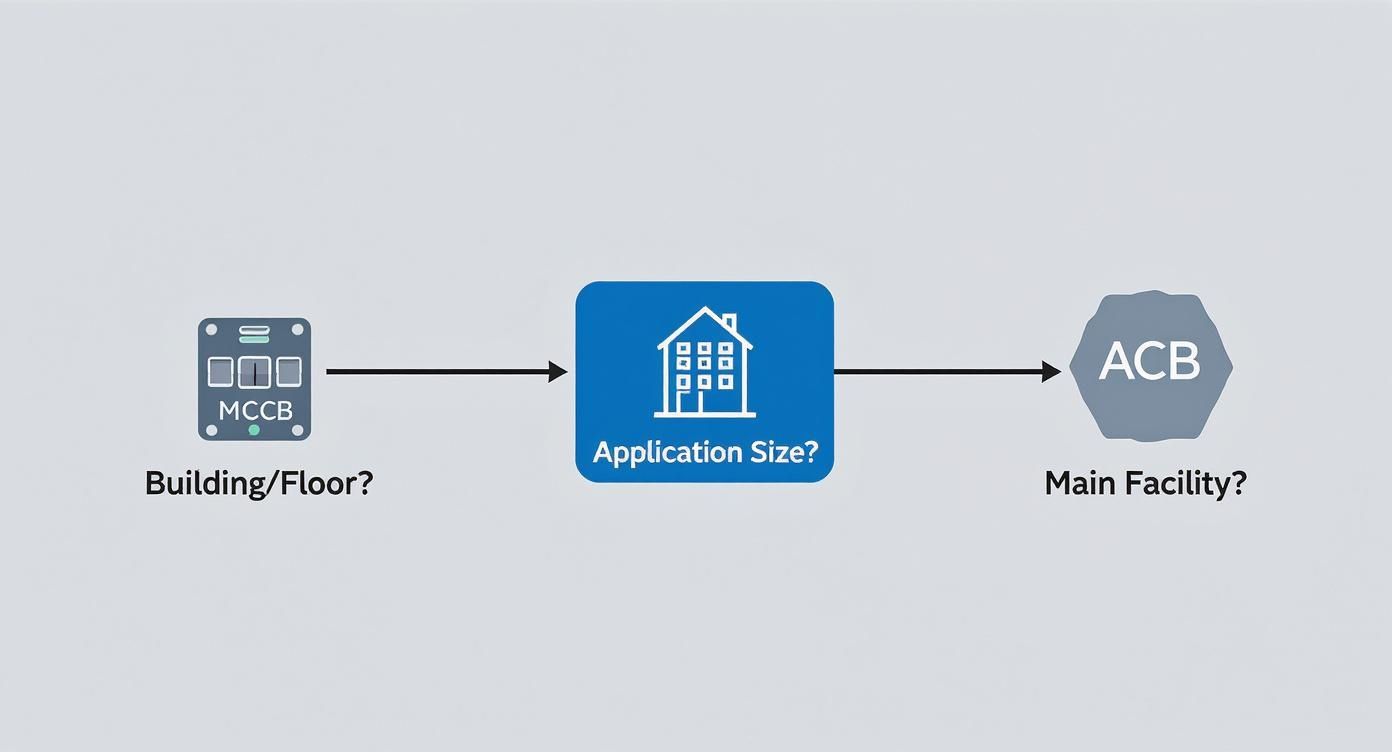

Choosing Main Breakers: Air vs. Vacuum vs. SF6
When you're speccing the main breaker for an entire facility or a major distribution center, the stakes get much higher. The choice between an Air Circuit Breaker (ACB), a Vacuum Circuit Breaker (VCB), or an SF6 breaker really boils down to three key factors.
Maintenance Capacity: ACBs are absolute workhorses, designed to be maintained and even rebuilt in the field. This is a huge plus if you have a skilled on-site maintenance crew. VCBs, on the other hand, are pretty much maintenance-free, making them perfect for facilities that need to minimize downtime and labor costs at all costs.
Operational Uptime: Because they have an exceptionally long operational life and require so little service, VCBs are often the go-to for critical facilities. Think data centers or continuous manufacturing plants where even a short shutdown is catastrophic to the budget.
Environmental and Budgetary Goals: SF6 breakers deliver incredible performance, but they come with strict environmental rules for handling the gas. VCBs are environmentally friendly but can carry a higher price tag upfront. And the classic ACBs? They often come in as the most budget-friendly initial option.
Traditional vs. Electronic Trip Units
The final, and perhaps most modern, decision you'll face is whether to stick with a traditional thermal-magnetic trip unit or upgrade to an advanced electronic one, especially in MCCBs and ACBs.
A thermal-magnetic trip unit is the old-school mechanical standard. It uses a bimetal strip for overloads and an electromagnet for short circuits. It's simple, reliable, and cost-effective for basic protection. It just works.
An electronic trip unit, however, is the brain of a modern smart breaker. It uses a current transformer and sophisticated microprocessors to offer far more precise and customizable protection. This is what unlocks some powerful advantages for today's connected factories:
Adjustable Protection: You can fine-tune trip curves and delay settings with incredible accuracy, tailoring protection perfectly to the load.
Advanced Diagnostics: Suddenly you have access to a firehose of data on energy usage, power quality, and fault history.
Network Communication: The breaker becomes a node on your network, integrating into your SCADA or building management system for remote monitoring and control.
For any operation that's serious about predictive maintenance and data-driven efficiency, the investment in electronic trip units quickly pays for itself through smarter protection and invaluable operational intelligence.
Ensuring Long-Term Breaker Reliability and Maintenance
Picking the right breaker is only half the battle. If a circuit breaker doesn't trip when a fault occurs, it’s not much more than a fancy switch—and it gives you a false sense of security. The only way to guarantee these critical safety devices will work when you need them most is through proactive, hands-on maintenance. It's what protects your people and prevents catastrophic equipment failures.
A good maintenance program isn't passive; it's an active strategy. This can be as simple as visually checking an MCCB for burn marks or as complex as full diagnostic testing on medium-voltage gear. The entire point is to find problems before they find you, following guidelines from organizations like the National Electrical Testing Association (NETA).
A circuit breaker is one of the few things you install hoping you'll never actually need it. But when that moment comes, failure is simply not an option. Regular testing is the only way to know it’s ready to do its job.
Core Maintenance and Testing Procedures
For the larger, more critical breakers in your system, a preventive maintenance plan is a must. Each test gives you a different piece of the puzzle, confirming the internal components are healthy and ready to act.
Think of it as a check-up for your electrical system's first responders. The key tests include:
Insulation Resistance Testing: You'll hear this called "megger" testing. It's a high-voltage test that confirms the breaker's internal insulation is solid, ensuring there are no hidden paths for current to leak and cause a failure.
Contact Resistance Measurement: This test pushes a precise DC current through the main contacts to measure how much resistance they create. A low, steady reading is a great sign—it means the contacts are clean and making a strong connection, which prevents dangerous overheating under load.
Primary Injection Testing: This is the ultimate "prove it" test. We inject a massive amount of current directly through the breaker to simulate a real-world fault. It's the only way to verify the trip unit and all the mechanical parts work together to open the circuit at the exact time and current they're supposed to.
The Shift Towards Low-Maintenance Tech
As everyone pushes to reduce downtime and service calls, breaker technologies that require less hand-holding have become incredibly popular. Vacuum circuit breakers (VCBs) are a perfect example, having taken over their market segment thanks to their incredible longevity and minimal upkeep.
Because they extinguish arcs inside a sealed vacuum interrupter, they last longer, take up less space, and are much friendlier to the environment than older oil or air-blast technologies. It's a major reason why market research on the high voltage circuit breaker market from gminsights.com shows such strong growth and preference for these designs.
Your Top Questions Answered: Breaker Types Explained
When you're dealing with circuit protection, a few key questions always seem to pop up. Getting the right answers is non-negotiable for designing and maintaining a safe, reliable system. Let's clear up some of the most common points of confusion professionals run into.
What's the Real Difference Between an MCB and an MCCB?
At first glance, they both just look like breakers. But the gap between a Miniature Circuit Breaker (MCB) and a Molded Case Circuit Breaker (MCCB) is all about scale, muscle, and flexibility. MCBs are the smaller of the two, built for lighter loads, and are typically rated for currents under 125A. Their trip settings are fixed right from the factory—what you see is what you get.
MCCBs, on the other hand, are the heavyweights. They're physically larger and built to handle much bigger loads, with some rated up to 3,000A. Many of them also come with adjustable trip settings, letting you fine-tune the overload and short-circuit protection. The biggest differentiator, though, is an MCCB's much higher interrupting capacity. This makes it the only safe choice for main distribution and feeder circuits where a fault could unleash enormous amounts of energy.
When Do I Actually Need a Motor Circuit Protector Instead of a Regular Breaker?
You grab a Motor Circuit Protector (MCP) when you need to protect one thing and one thing only: a motor. An MCP is a specialized, magnetic-only device, meaning its sole job is to provide instantaneous protection against short circuits. It’s engineered to ignore the massive inrush of current when a motor kicks on, preventing those nuisance trips that would drive you crazy with a standard breaker.
But here’s the critical part: an MCP provides zero overload protection by itself. It must always be paired with a separate overload relay to keep the motor windings from cooking. This two-part system gives you incredibly precise protection that a generic, one-size-fits-all breaker just can't deliver.
Why Is Everyone Talking About Vacuum Circuit Breakers Lately?
There's a good reason Vacuum Circuit Breakers (VCBs) are becoming the new standard in so many places—they just perform better and cost less to own over their lifetime. The magic is in their sealed vacuum interrupters, which are incredibly efficient at snuffing out an electrical arc.
This ability to kill an arc so cleanly means the internal contacts barely wear down over time. The result is a breaker with a ridiculously long operational life that needs far less maintenance than the old-school air or oil-filled units. On top of that, VCBs are more compact and don't rely on SF6, a potent greenhouse gas. That combination of reliability, efficiency, and environmental friendliness makes them the smart, forward-thinking choice for modern industrial substations.
For all your industrial electrical needs, from custom UL control panels to motor control solutions, E & I Sales provides the expertise and equipment to ensure your systems are safe, reliable, and efficient. Discover our full range of products and services at eandisales.com.
Circuit breaker ratings aren't just technical specs—they're the specific performance limits that tell you exactly how a breaker will behave under pressure. Think of them as a safety contract. These numbers define what the breaker can handle safely, from amperage and voltage to its ability to stop a catastrophic fault in its tracks.
Getting these ratings right is the bedrock of electrical safety and preventing costly equipment damage.
What Do the Numbers on a Circuit Breaker Mean?
That jumble of numbers stamped on a breaker's faceplate is the most important story it will ever tell. It's the language of performance and protection, dictating exactly where and how that device fits into your system. Get it wrong, and you're looking at nuisance trips, fried equipment, or worse—a dangerous arc flash event.
To really speak this language, you have to master what I call the "big three" of circuit breaker ratings:
Continuous Current (Amperage): This is pretty straightforward. It’s the maximum current the breaker can carry 24/7 without overheating or tripping.
Voltage Rating: This tells you the maximum system voltage the breaker can safely be installed in. Exceeding this is a recipe for disaster.
Interrupting Capacity (kAIC): Arguably the single most important safety rating. This is the maximum fault current the breaker can bring to a dead stop without literally blowing itself apart.
The Foundation of Electrical Safety
Think of a breaker as a security guard for a circuit. Its ratings are its standing orders. The amperage rating tells it how much traffic is normal. The voltage rating sets the pressure it can withstand. And the interrupting capacity? That’s its tested ability to stop a full-blown riot without failing.
Understanding these fundamental ratings is the first step toward building safe, reliable, and code-compliant electrical systems. It turns abstract numbers into real-world knowledge that prevents downtime and protects both people and property.
Why It Matters in Industrial Settings
In an industrial plant, the stakes are so much higher. You’ve got expensive motors, complex switchgear, and the potential for massive fault currents. Downtime costs can run into the thousands per hour. Here, choosing a breaker with the right ratings isn't a suggestion—it's a hard requirement spelled out by standards like the National Electrical Code (NEC) and certified by labs like UL.
This guide is designed to give you the confidence to read these specs on any piece of gear you come across. By the time we’re done, you’ll know exactly how to translate your system’s needs into the right component choice, ensuring every single circuit is properly protected.
Quick Reference for Key Circuit Breaker Ratings
Before we dive deeper, here's a quick summary of the most critical ratings. Think of this as your cheat sheet for making sense of what you see on a breaker's label or datasheet.
Rating
What It Measures
Why It Is Critical for Industrial Systems
Current Rating (Amps)
The maximum current it can handle continuously without tripping.
Prevents overheating of conductors and protects equipment like motors and drives from sustained overcurrents.
Voltage Rating (Volts)
The maximum system voltage where the breaker can safely operate.
Ensures the breaker's internal insulation can withstand system voltage, preventing internal short circuits.
Interrupting Capacity (AIC/kAIC)
The highest fault current the breaker can safely interrupt.
This is a crucial safety metric. A low AIC in a high-fault environment can lead to a catastrophic breaker failure and arc flash.
Trip Curve
How quickly the breaker responds to different levels of overcurrent.
Allows for coordination with other devices, preventing nuisance trips on motor startup while still protecting against short circuits.
These four ratings form the core of proper circuit breaker selection. Getting them right is non-negotiable for a safe and reliable industrial power system.
Getting to Grips with Amperage and Voltage Ratings
When you pick up a circuit breaker, the first two things you'll look for are its amperage and voltage ratings. These are the absolute fundamentals. They tell you the breaker’s basic operational limits and whether it’s even in the right ballpark for your circuit.
Getting either of these wrong isn't just a minor slip-up—it can lead to chronic tripping, fried equipment, or, worst of all, a serious safety hazard.
Let's start with amperage, which you'll see officially called the continuous current rating. That big number stamped on the handle or face of the breaker is the maximum current (in amps) it can handle day-in and day-out without overheating and tripping.
A good analogy is a water pipe. A wider pipe lets more water flow through it continuously without any trouble. In the same way, a breaker with a higher amp rating has beefier internal components built to manage more electrical current without getting dangerously hot.
The Amp Rating and the 80% Rule
Now, it's not quite as simple as matching your expected load directly to the breaker's amp rating. The National Electrical Code (NEC) throws in a crucial safety buffer, especially for loads that run for three hours or more—what we call continuous loads. Think about the motors, lights, and heaters in an industrial plant; they run for long stretches.
This is where the NEC's "80% Rule," found in Article 210.20(A), comes into play. It mandates that a standard circuit breaker should only be loaded to 80% of its continuous current rating for these marathon-style loads.
Quick Calculation: Say you have a piece of equipment that draws a continuous 16 amps. You can’t just grab a 16A breaker. You need to do the math: 16A ÷ 0.80 = 20A. The correct choice here is a 20-amp breaker.
A Note on 100% Rated Breakers: You might run into specialized industrial breakers rated for 100% continuous duty. These exist but are less common and come with strings attached—they need specific enclosures and wiring to handle all that extra heat safely.
This rule is all about one thing: heat. Pushing a standard breaker to its limit for hours on end generates excessive heat, which slowly cooks the internal components. Over time, this leads to nuisance trips or, even worse, a failure to trip when a real fault happens.
Why Voltage Rating is Non-Negotiable
If amperage is about flow, then voltage rating is about pressure. This rating tells you the maximum system voltage the breaker's internal insulation can safely handle. Go back to our water pipe analogy—the voltage rating is like the pipe's pressure rating. If you exceed it, the pipe bursts.
It’s a simple but strict rule: a breaker's voltage rating must always be equal to or greater than the system voltage. Putting a low-voltage breaker into a high-voltage system is a recipe for disaster. The insulation will inevitably fail, causing an internal short and creating the potential for a catastrophic arc flash.
For example, installing a 120V residential breaker in a 277V commercial lighting circuit isn't just a bad idea; it's a direct violation of safety codes and an immediate hazard.
A circuit breaker's whole purpose is to open a circuit safely. If its insulation can't even withstand the system's normal voltage, it has failed at its most basic job before a fault ever occurs.
What’s a Slash Voltage Rating?
In the world of three-phase industrial power, you’ll constantly see "slash" ratings like 480/277V or 208/120V. This is one of the most common circuit breaker ratings, and it has a very specific meaning:
The higher number (480V) indicates the maximum phase-to-phase voltage the breaker can interrupt.
The lower number (277V) is the maximum phase-to-ground voltage it can handle.
This means you can only use a slash-rated breaker on a solidly-grounded system where the voltage to ground never exceeds that lower number. This standard has evolved over the decades. Back in the late 1950s, 60-amp breakers became the norm, handling much higher voltages than older models, and by the 60s, panels were being built for 200-amp services. You can learn more about how this history impacts modern industrial codes and applications over on Relectric.com. Today's ratings are a direct result of that evolution, designed for the complex and demanding power systems we rely on.
Interrupting Capacity: The Ultimate Safety Rating
If the amperage and voltage ratings tell you what a breaker can do on a normal day, the Interrupting Capacity (IC) tells you what it can do on its absolute worst day. You could argue this is the single most important safety spec on any circuit breaker. It’s the maximum fault current the device can handle and safely extinguish without, well, exploding.
Think of it like this: the amperage rating is the speed limit for everyday traffic. The Interrupting Capacity is the strength of the guardrail designed to stop a fully loaded semi-truck crashing at high speed. If that guardrail gives way, the outcome is catastrophic.
A fault current, usually from a dead short, is a tidal wave of electricity that can be hundreds or even thousands of times higher than the normal current. Without being stopped in a fraction of a second, that raw energy will melt conductors, ignite fires, and create a deadly arc flash.
Defining Interrupting Capacity
You'll see Interrupting Capacity listed in kiloamperes (kA), which is why it's often called kAIC (kiloampere interrupting capacity). A breaker stamped with 10 kAIC can safely shut down a short circuit of up to 10,000 amps. Simple as that.
But what happens if a fault current exceeds that rating? The breaker itself becomes the point of failure. The incredible magnetic forces and searing heat from the fault can literally blow the device apart. It fails its one job, becoming a dangerous projectile and letting the fault continue to destroy everything downstream.
An undersized Interrupting Capacity rating isn’t a small mistake—it’s a direct violation of NEC 110.9 and a ticking time bomb. The breaker must be rated to handle the maximum available fault current where it’s installed.
This is exactly why a proper fault current study is non-negotiable for any commercial or industrial facility. It's an engineering analysis that calculates the worst-case scenario current, which then dictates the minimum kAIC required for every single protective device in the system.
IEC Standards: Icu versus Ics
When you're working with international equipment or IEC standards, you’ll run into two distinct but related ratings from the IEC 60947-2 standard:
Icu (Ultimate Short-Circuit Breaking Capacity): This is the absolute maximum fault current the breaker can stop. But here’s the catch: after doing its job at this level, the breaker might be toast. It survived, but it may not be usable again without a full inspection or replacement. It’s a one-shot, life-saving rating.
Ics (Service Short-Circuit Breaking Capacity): This rating tells you the maximum fault current the breaker can clear and still be ready for immediate reuse. It’s shown as a percentage of Icu (like 25%, 50%, or 100%). A breaker with an Ics that's 100% of its Icu is a real workhorse—it can handle the worst and get right back to work.
Knowing the difference here is critical. A breaker with a high Icu but low Ics might save the day once, but it will need to be replaced, causing expensive downtime. For critical operations, specifying a breaker with a high Ics rating is key to keeping the lights on.
On a related note, when designing electrical systems for server cabinets, understanding power sizing for PDUs is crucial, as it directly influences the required amperage and voltage ratings for circuit breakers. You can dive deeper into the essentials for Server Cabinet PDU Power Sizing.
Why kAIC Is a System-Wide Concern
The available fault current in a building isn't a single number. It's highest right at the power source—like the main utility transformer—and gets progressively lower as you move further away, thanks to the impedance of the wiring.
This means the breakers in your main switchgear need a massive kAIC rating, while a breaker in a small sub-panel at the far end of the facility needs a much lower one.
For instance, a main breaker right off the transformer might require a 65 kAIC rating. But a panelboard breaker in an office area in that same building might only need 10 kAIC. It’s all about location, location, location. Getting this right is a fundamental part of safe electrical design.
For those working with specific brands, you can find detailed datasheets and application notes from manufacturers like ABB. If you're looking for components, you can explore various options and their ratings—for instance, an ABB circuit breaker will have its kAIC clearly specified for different voltage levels.
How Trip Curves Define a Breaker's Personality
If the amperage and voltage ratings are a breaker's vital statistics, the trip curve is its personality. This rating explains exactly how a breaker will behave when things go wrong, defining its response time to different levels of overcurrent.
Think of it as a smart security system. It’s designed to ignore a harmless, momentary power surge but react instantly to a genuine threat, like a direct short circuit. It's not just a simple on/off switch; it’s a decision-maker.
Two-Stage Protection: The Brains of the Breaker
Every trip curve is built on two distinct protective functions working in tandem. Understanding how they operate together is the key to preventing annoying nuisance trips while ensuring your equipment and people are safe.
Long-Time Delay (Thermal Protection): This is your first line of defense against minor, sustained overloads. Inside the breaker, a bimetallic strip slowly heats up and bends when the current creeps just above its rating. This built-in delay is crucial—it prevents the breaker from tripping every time a motor starts up or another harmless, temporary inrush occurs.
Instantaneous Trip (Magnetic Protection): This is the emergency eject button for catastrophic faults. When a massive surge from a short circuit hits, an internal electromagnet triggers the trip mechanism in a fraction of a second. There’s no delay, no hesitation. It’s all about shutting down a dangerous event now.
This chart really puts it into perspective. It shows the huge difference between the normal current a breaker sees every day and the massive fault currents it has to stop in its tracks.
As you can see, a breaker has to be smart enough to let the normal operational current flow while being ready to slam the brakes on a fault current that can be 5 to 20 times larger.
Matching the Curve to the Application
Different types of equipment have different electrical needs, which is why you can’t use a one-size-fits-all breaker. Manufacturers offer a range of standard trip curves, and picking the right one is absolutely critical for a reliable and safe electrical system.
A trip curve is the breaker’s decision-making logic. Choose the wrong one, and you’ll either have constant downtime from nuisance trips or, far worse, a breaker that fails to protect your system when a real fault occurs.
You’ll most often run into these three common IEC-standardized curves:
Type B: Trips between 3 to 5 times its rated current. This is a very sensitive curve, making it perfect for resistive loads like heating elements or protecting circuits with delicate electronics.
Type C: Trips between 5 to 10 times its rated current. This is your go-to, general-purpose curve. It’s ideal for most commercial and industrial situations, handling moderate inrush currents from things like lighting systems and smaller motors.
Type D: Trips between 10 to 20 times its rated current. Built for the heavy hitters, this curve is designed to handle the massive startup currents from large motors, transformers, and welding equipment without tripping unnecessarily.
Putting a large industrial motor on a Type B breaker, for instance, is a classic mistake. The motor's normal inrush current on startup will almost certainly be seen as a major fault by the highly sensitive breaker, causing it to trip every single time. If that sounds familiar, our guide on what can cause a breaker to trip might help you troubleshoot.
In North America, industrial breakers follow ANSI/IEEE C37 standards, with frame sizes from 600A to 5000A that feature adjustable trip settings crucial for proper system coordination. Interestingly, the 500-1500A segment is a huge part of the market, accounting for 33.1% of revenue because of its widespread use in medium-to-heavy industrial facilities.
Putting It All Together: Selecting the Right Breaker for Your Application
Alright, we’ve covered the core ratings—amperage, voltage, interrupting capacity, and trip curves. Now it's time to bring that knowledge to the factory floor. Picking the right breaker for a demanding industrial job is more than just matching a few numbers on a spec sheet. You have to look at the whole picture, the entire operational environment, and understand how these different ratings play off each other to keep things safe and running smoothly.
This is where the less-common ratings really start to matter, especially when you're dealing with the tough conditions inside a manufacturing plant or a crowded equipment control panel. Two of the most important ones to get right are temperature derating and short-time withstand current.
Temperature Derating: Why Heat is the Enemy
Circuit breakers are surprisingly sensitive to heat. Most standard thermal-magnetic breakers are calibrated to work perfectly at an ambient temperature of 40°C (104°F). But what happens when you stick that same breaker inside a hot, stuffy industrial control panel packed with other heat-generating components? Its performance starts to drift.
This is called temperature derating. As the air around the breaker gets hotter, its ability to carry its rated current drops. Think about it: the bimetallic strip inside is already warm from the environment, so it takes less current to heat it up the rest of the way and trigger a trip.
A breaker rated for 100 amps at 40°C might only handle 85 amps continuously if the panel temperature climbs to 55°C. Ignoring derating is one of the most common reasons for nuisance tripping in warm environments, and every false trip costs a facility valuable uptime.
Luckily, manufacturers provide derating tables in their datasheets to help you make this adjustment. It’s an absolutely critical calculation that prevents a perfectly good breaker from being misapplied in a high-temperature spot, like near a furnace or inside a sun-baked electrical house.
Short-Time Withstand Current (Icw) for System Coordination
When you get into more complex industrial systems with layers of protection, another rating becomes essential: Short-Time Withstand Current (Icw). This IEC-defined rating tells you how much fault current a breaker can handle for a very short, specific time (usually up to 1 second) without tripping.
Now, why on earth would you want a breaker to wait to trip during a fault? The answer is all about selective coordination.
In a well-coordinated system, you only want the breaker closest to the fault to open, leaving the rest of the facility powered up. If a small motor circuit shorts out, you want its little breaker to trip—not the main breaker feeding the entire plant. Icw gives those bigger, upstream breakers the ability to hold on for just a moment, giving the downstream device a chance to do its job and clear the fault first.
A Practical Example: Sizing a Breaker for a 100HP Motor
Let's pull all these ideas together with a real-world task: choosing a circuit breaker for a 100-horsepower, 460V, 3-phase motor.
1. Find the Motor's Full Load Amps (FLA) First, we head straight to the National Electrical Code. According to NEC Table 430.250, a 100HP, 460V, 3-phase motor has a full-load current (FLA) of 124 amps. This is our starting point.
2. Calculate Wire and Breaker Size Next, NEC Article 430.22 tells us the wires feeding the motor need to be sized for at least 125% of the FLA to handle the load safely.
Required Ampacity: 124A x 1.25 = 155 amps
With this number, we know we need wires and a breaker that can handle at least 155 amps. A quick look at standard breaker sizes in NEC 240.6 shows that the next size up is a 175-amp breaker.
3. Account for the Motor's Starting Kick This is where the trip curve comes in. Motors draw a massive inrush of current when they start, and we need a breaker that won't see that as a fault. NEC Table 430.52 gives us some leeway, allowing an inverse-time breaker to be sized up to 250% of the motor's FLA to ride out that startup surge.
Maximum Breaker Size: 124A x 2.50 = 310 amps
Our 175A choice is well below this 310A maximum, making it a great pick. It provides solid overload protection without causing annoying nuisance trips every time the motor kicks on. For a deeper dive into these calculations, check out our in-depth article on circuit breaker sizing for industrial motors.
4. The Final Check Before we sign off, we quickly verify the rest of the critical ratings:
Voltage Rating: Must be 480V or higher for our 460V system.
Interrupting Capacity (kAIC): Has to be equal to or greater than the available fault current where the breaker is installed.
Derating: Double-check the ambient temperature inside the motor control center. If it's hot, we might need to adjust that 175A rating based on the manufacturer's charts.
Following this step-by-step process is how you turn system requirements into a safe, reliable, and code-compliant installation every single time. To make it even easier, here's a simple checklist to run through for your next industrial motor project.
Checklist for Industrial Breaker Selection
Selecting the right breaker for an industrial motor requires a systematic approach to ensure safety and reliability. This checklist walks through the key steps, from calculating the load to verifying environmental factors.
Selection Step
Key Consideration
Relevant Rating
1. Determine Load Current
What is the motor's Full Load Amperage (FLA) from the NEC tables or nameplate?
Continuous Current (Amps)
2. Size Conductors & Breaker
Calculate the minimum ampacity (typically 125% of FLA) and select the next standard breaker size up.
Continuous Current (Amps)
3. Verify Voltage
Does the breaker's voltage rating meet or exceed the system voltage (e.g., 480V)?
Voltage Rating
4. Check Interrupting Capacity
Is the breaker's kAIC rating higher than the available short-circuit current at the point of installation?
Interrupting Capacity (kAIC)
5. Accommodate Inrush
Is the breaker sized to handle motor startup current without tripping (per NEC 430.52)?
Trip Curve (Time-Current)
6. Account for Environment
Is the ambient temperature higher than 40°C? If so, apply the manufacturer's derating factor.
Temperature Derating
7. Confirm System Coordination
For complex systems, does the breaker need an Icw rating to coordinate with downstream devices?
Short-Time Withstand (Icw)
By methodically working through this checklist, you can be confident that you've considered all the critical factors, leading to a robust and compliant motor protection scheme.
Common Mistakes and Best Practices in Breaker Selection
Knowing your circuit breaker ratings is one thing. Applying that knowledge out in the field is another ballgame entirely. It's what separates a safe, reliable system from a disaster waiting to happen.
I've seen even experienced technicians fall into common traps that compromise protection and lead to expensive failures. Let's turn some of those hard-won lessons into practical advice you can use.
One of the most dangerous mistakes I see is someone ignoring the available fault current. They just grab a replacement breaker with the same amp rating and call it a day. That's not enough. If that new breaker has a lower kAIC rating than the system can produce, you've created a ticking time bomb. It could literally explode during a major short circuit.
Another classic oversight is forgetting about heat. Tossing a standard breaker into a packed, sun-drenched control panel without considering temperature derating is just asking for trouble. You'll get constant nuisance tripping, and you'll cook your equipment long before its time.
Top Pitfalls to Avoid
To keep this from happening, you need to treat every breaker replacement like a brand-new installation. Never assume the last guy got it right. Always verify the system's needs.
Here are three critical mistakes I see all the time, and how you can sidestep them:
Ignoring kAIC: Don't even think about swapping a breaker without confirming the system’s available fault current. The replacement's kAIC must be equal to or greater than that number. No exceptions.
Misunderstanding Trip Curves: Putting a sensitive Type B breaker on a motor circuit is a rookie move. It'll trip every single time the motor starts up. You have to match the trip curve to what the load is actually doing.
Forgetting Derating: Working in an environment hotter than 40°C (104°F)? You need to pull out that datasheet and apply the correct temperature derating factor. Having clear product specifications is non-negotiable for critical components like this.
Best Practices for Safe Selection
Following a few simple best practices elevates breaker selection from a chore to a professional discipline. It's about more than just compliance—it's about maximizing uptime and protecting your assets.
The right breaker does more than just stop overloads. It’s the silent guardian for your entire electrical system. Getting this selection right is the foundation of a safe and reliable operation.
First, always work from a verified single-line diagram and an up-to-date fault study. Second, document every single breaker you install—log its ratings and the installation date for future maintenance. The global demand for these components is exploding, with the market valued at USD 25.2 billion in 2025 and projected to hit USD 57.5 billion by 2035. This just goes to show how critical precise selection is becoming.
And finally, if you're ever in doubt, just ask. Talk to a qualified engineer or a supplier you trust. It's always better to be safe than sorry.
Common Questions About Circuit Breaker Ratings
When you're in the field, a few common but critical questions about circuit breaker ratings always seem to pop up. Getting straight answers is the key to keeping people and equipment safe, so let's clear up some of the most frequent challenges that engineers and technicians run into.
Can I Replace a Breaker with a Higher Amperage One?
Let’s make this simple: Absolutely not. Pulling out a breaker and swapping it for one with a higher amp rating is one of the most dangerous things you can do to a panel.
The original breaker's amperage was specifically chosen to protect the building's wiring in that circuit. Pushing a higher-rated breaker into its slot is like telling the system it's okay to let more current flow than the wires can safely handle. That’s a recipe for disaster, causing wires to overheat, melt their insulation, and potentially ignite anything nearby.
Always, always replace a breaker with one that has the exact same amperage rating. No exceptions.
What's the Real Difference Between UL 489 and UL 1077?
These two UL standards look similar, but they define a breaker’s approved job, and they are definitely not interchangeable. Mixing them up is a serious code violation and a major safety risk.
UL 489 Circuit Breakers: Think of these as your frontline soldiers. They are true "branch circuit protectors," built and tested to handle the punishing forces of major overloads and direct short circuits. You'll find them standing guard in panelboards and switchgear.
UL 1077 Supplementary Protectors: These are more like specialist bodyguards. They are designed to be used inside a piece of equipment to protect a specific, sensitive component, like a VFD or a power supply. They are not rated for branch circuit protection and legally require a UL 489 device upstream to protect the wider circuit.
Using a UL 1077 device where a UL 489 breaker is required is like sending a security guard with a taser to stop a tank. The supplementary protector simply isn't built to withstand the massive fault current of a main branch circuit.
How Do I Figure Out the Right kAIC Rating?
The kAIC (or Interrupting Capacity) you need must be equal to or greater than the maximum available fault current at that specific point in the system. And this is not something you can guess or estimate.
To get this number, you need a short-circuit study or a fault current calculation, which is work for a qualified electrical engineer. The analysis takes into account everything from the utility transformer's size and impedance to the length and gauge of every wire feeding the panel.
For any industrial or commercial facility, having an up-to-date fault study isn't just a good idea—it's a fundamental requirement for ensuring your protective devices are actually up to the job.
At E & I Sales, we don't just sell components; we deliver complete, engineered solutions. From custom UL control panels to full system integration, we make sure every part of your system has the right ratings for rock-solid safety and reliability. Visit us at eandisales.com to talk about your next project.
Ever wonder how you can safely measure the massive electrical currents flowing through industrial machinery? You can't just hook a standard multimeter up to a 4,000-amp busbar—it would be toast in an instant. This is where the humble but essential current transformer, or CT, comes into play.
Think of a CT as a gear reduction system for electricity. It takes a dangerously high primary current and steps it down to a much smaller, safer, and perfectly proportional secondary current. This allows standard instruments to get an accurate reading without being exposed to hazardous energy levels.
What Does a Current Transformer Actually Do?
At its core, a current transformer is a safety and measurement device. It's the critical link between the high-power world of motors, switchgear, and transformers and the delicate, low-power world of metering and protection relays.
Its primary job is to produce a precise, scaled-down replica of the high current flowing through a primary conductor. By isolating measurement instruments from the high-voltage side of the system, a CT allows standard, low-current devices to accurately monitor what's happening on the power system without risk.
Core Functions of a Current Transformer at a Glance
For any plant engineer or technician, a CT isn't just another component; it's a fundamental building block for a safe and reliable electrical network. Its roles are central to keeping the power on and protecting expensive equipment. The table below breaks down its key functions.
Function
Description
Industrial Application Example
Accurate Metering
Provides a scaled-down current signal for energy meters, power monitors, and ammeters to track consumption and load.
A utility meter uses a CT to accurately bill a manufacturing plant for its precise energy usage.
System Protection
Feeds a signal to protective relays to detect overcurrents, short circuits, or ground faults, triggering a breaker to open.
A protective relay connected to a CT on a large motor circuit trips the breaker if the motor stalls, preventing a catastrophic burnout.
Control and Automation
Supplies real-time current data to control systems like PLCs or VFDs to manage equipment performance and processes.
A VFD uses a CT's feedback to adjust motor speed, optimizing the performance of a conveyor system.
This simple device is a foundational topic in electrical engineering, bridging the gap between raw power and intelligent control.
The importance of these functions in the real world can't be overstated. Without them, we'd have no practical way to manage modern industrial power systems.
In essence, a current transformer makes the invisible and dangerous flow of high current visible and safe. It translates a powerful electrical signal into a language that monitoring and protection equipment can understand and act upon.
You’ll see the symbol for a CT all over electrical schematics, which is why it's so important to recognize what it represents. If you want to dive deeper, you can learn more about the common single-line diagram symbols used in electrical plans.
Ultimately, operating a modern industrial facility safely and efficiently would be impossible without CTs. They are the unsung heroes of power distribution, working silently in the background to ensure every part of the system works in perfect harmony.
How Current Transformers Actually Measure Current
To really get what a current transformer does, you have to look under the hood. The whole operation hinges on a fascinating bit of physics called electromagnetic induction, which lets the CT measure huge currents without ever making direct electrical contact with the main circuit. It's an elegant and incredibly safe solution.
Think of the primary, high-current wire as a massive, raging river. You need to know how fast it's flowing, but jumping in is out of the question. So, what do you do? You place a small water wheel right next to the river's edge. The sheer force of the main current's flow makes your little wheel spin, creating a much smaller, perfectly proportional measurement. That's a CT in a nutshell.
The CT’s core, usually a donut-shaped ring made of laminated silicon steel, is slipped over the primary conductor (our river). As high current surges through that conductor, it creates a powerful magnetic field that gets concentrated inside the core. This magnetic energy is the "force" that drives the whole process.
The Magic of the Turns Ratio
The real work happens in the secondary coil, which is just many turns of fine copper wire wrapped around that same core. The pulsing magnetic field in the core induces a much smaller current into this secondary coil.
How much smaller? It all comes down to a simple but critical relationship called the turns ratio.
Primary Winding: The main conductor passing through the CT's center is considered a single turn (N₁ = 1).
Secondary Winding: The coil has many, many turns (for example, N₂ = 100).
The current gets stepped down by that exact same ratio, but in reverse. So, if 500 amps are flowing through the primary conductor, the secondary coil will only see 5 amps (500 divided by 100). This predictable, fixed step-down is what makes a CT such a reliable tool for metering and protection.
This visual shows the basic idea of stepping down a high, dangerous current to a much lower, measurable level for your equipment.
As the diagram shows, the CT’s core function is to transform a hazardous high current into a safe, low-current signal. This scaled-down signal is then fed into devices like meters, relays, or control panels, which are all designed to work with these standard, low-energy inputs.
Why This Principle Matters in the Field
Understanding this isn't just for the engineers in the lab; it directly impacts how you choose and use a CT on the job site. The ratio, like 400:5 or 1000:5, is the single most important number on any current transformer. It tells you exactly how much the current is being reduced.
Let's say you're setting up a protective relay for a big motor. You use the CT ratio to tell the relay what to look for. If that relay sees 4 amps coming from a 400:5 CT, it knows the motor is actually pulling 320 amps (4 x 80). That precise translation is what keeps expensive equipment from burning up.
This simple, passive device with no moving parts performs one of the most critical tasks in power distribution. It provides the essential, real-time data needed to run a system safely and efficiently.
A Closer Look at the Main Types of Current Transformers
Not all current transformers are created equal. Just like you wouldn't use a sledgehammer for a finishing nail, picking the right CT for the job is critical for accuracy, safety, and a smooth installation. In most industrial plants, you'll run into three main designs: Window, Bar, and Wound CTs.
Getting a handle on how each one is built and where it shines will help you make smarter decisions when designing or upgrading your systems. Each type has its own set of advantages, whether you're retrofitting an old panel or building out brand new switchgear.
This isn't just a niche concern—the demand for precise electrical components is booming. The U.S. current transformer market hit USD 627.6 million in 2023 and is on track to break USD 1 billion by 2034. That growth is fueled by massive investments in modernizing the grid, showing just how vital these devices are.
The Versatile Window CT
The Window CT is probably the one you'll see most often. It's exactly what it sounds like: a transformer with a hole, or "window," in the middle. You just pass your main power-carrying conductor right through it. Simple, effective, and available in two key flavors.
Solid-Core Window CTs are a single, unbroken ring. To install one, you have to completely disconnect the primary conductor and thread it through. This makes them a perfect fit for new construction, where you're building the system from the ground up.
Split-Core Window CTs are a maintenance team's best friend. Their hinged, two-piece body clamps open and closed around an existing conductor, meaning you don't have to kill the power. This design is a lifesaver for retrofits, energy audits, or adding monitoring to live equipment.
Key Takeaway: The ability to install a split-core CT on an energized circuit is its superpower. It saves a massive amount of downtime and labor, which is why it's the go-to for adding metering to legacy gear.
The Rugged Bar-Type CT
Next up is the Bar-Type CT. This one is built like a tank for high-current jobs where durability is paramount. Instead of just an open window, this CT has a heavy-duty copper or aluminum bar built right into it.
That bar becomes an integral part of your electrical buswork, getting bolted directly into the system. This not only acts as the primary winding but also adds incredible mechanical strength. You'll find these inside switchgear, motor control centers, and large service entrances where you can't afford any weak links. Installing one is a serious job that requires a full system shutdown.
The Precise Wound CT
Last but not least, we have the Wound CT. This type looks much more like a classic transformer because it has both its own primary and secondary windings coiled around the core. Unlike the other two types, where your system's conductor is the primary, here you physically wire the primary circuit to dedicated terminals on the CT.
This design really shines in low-current situations, typically below 100 amps. By having its own engineered primary coil, it can achieve fantastic accuracy even with tiny currents that wouldn't create a strong enough magnetic field for a window CT. They're often used for sensitive instrumentation and specialized control circuits. Catching those small electrical issues is crucial, much like how fault current indicators help protect distribution networks from bigger problems down the line.
To make selection a bit easier, here’s a quick rundown of how these three common types stack up against each other.
Comparing Common Current Transformer Types
CT Type
Best For
Key Advantage
Common Application
Window (Split-Core)
Retrofits & Existing Systems
Installs without power disruption.
Energy audits, load monitoring.
Window (Solid-Core)
New Installations
Cost-effective and simple.
Panelboards, motor control.
Bar-Type
High-Current Busbars
Maximum durability & strength.
Switchgear, service entrances.
Wound
Low-Current Circuits
High accuracy at low currents.
Instrumentation, relaying.
Ultimately, choosing the right CT comes down to understanding the physical constraints of your installation and the level of precision your application demands.
Here's the rewritten section, crafted to sound like it was written by an experienced human expert.
Getting the Specs Right: Ratio, Accuracy, and Burden
When you're staring at a current transformer's spec sheet, it can feel a bit overwhelming. But really, it all comes down to three critical numbers: the Ratio, the Accuracy Class, and the Burden rating. Get these three right, and you’ll have a system with spot-on metering, dependable protection, and equipment that operates just as it should.
These little devices are the unsung heroes of industrial control, and their importance is only growing. The global market for transformers, including these specialized CTs, was pegged at USD 67.55 billion in 2025 and is on track to hit USD 131.96 billion by 2035. That's a huge jump, and it tells you just how much industry relies on precise monitoring. You can dig into the numbers yourself in the full transformers market research from Precedence Research.
Let's unpack what these specs actually mean out on the factory floor so you can pick the right CT every time.
The CT Ratio: Simple and Essential
First up is the ratio—the most fundamental spec of any CT. It's just a simple, direct statement of how much it steps down the high current on the main line to a safe, measurable level on the secondary side. You'll see it written as two numbers, like 400:5 or 1000:5.
The first number (400) is the maximum current the CT expects to see on the primary conductor.
The second number (5) is what comes out of the secondary terminals when that maximum primary current is flowing.
So, for a 400:5 CT, if 400 amps are coursing through the main line, you'll get exactly 5 amps on the secondary. If the load drops to 200 amps (half the max), the output drops to a predictable 2.5 amps. It’s this straight-line relationship that lets your meters and protective relays know exactly what’s happening in the main circuit.
Accuracy Class: How Close to Perfect Do You Need to Be?
The ratio tells you what the output should be, but the accuracy class tells you how close to that ideal it will actually get. It’s given as a percentage, which is simply the maximum error you can expect at the CT's full rated current.
This is a big deal because not every job needs the same level of precision.
Metering Accuracy: When you're talking about utility billing or tracking energy usage for efficiency projects, every amp matters. Here you’ll want a high-precision CT, usually with a 0.3 accuracy class. This means its reading will always be within ±0.3% of the absolute true value. These are often called "revenue-grade" for a reason.
Relaying Accuracy: On the flip side, when a CT is feeding a protective relay for a motor, the game is different. The relay doesn't need to know the exact current down to the decimal; it just needs to know—and know fast—when the current shoots past a dangerous threshold. A 1.2 accuracy class (±1.2% error) is more than enough for this kind of protection work.
I see this all the time: people over-specifying accuracy. Putting a pricey 0.3 class CT on a simple motor protection circuit doesn't make it any safer—it just adds unnecessary cost to the project.
Burden: Don't Overload Your CT
Finally, let's talk about burden. The easiest way to think about it is to picture your CT as a workhorse. The Burden is the total load it has to pull—the meter, the length of the connecting wires, and anything else you’ve hooked up to the secondary circuit.
This load isn't measured in pounds, but in Volt-Amperes (VA) or ohms. The CT’s nameplate will tell you what it can handle, with a rating like B-0.5, which corresponds to a specific impedance it can drive without breaking a sweat.
If you connect more load than the CT is rated for, you're overloading that workhorse. It’ll struggle, and its accuracy will go right out the window. The core can saturate, giving you wildly incorrect readings. That could mean an energy meter gives you bogus data or, worse, a protective relay fails to trip when you need it most.
To keep everything running smoothly, the total VA of your meter, wires, and other devices must be less than or equal to the CT's burden rating. A good rule of thumb is to add up your total connected burden and then choose a CT with the next standard rating up. This gives you a nice safety margin and ensures it stays well within its happy, accurate range.
Putting a CT to Work: Safe Installation Practices
Getting a current transformer installed correctly isn't just about making sure your meters read right—it's about keeping people safe. A CT is a serious piece of industrial hardware, and like any other tool on the plant floor, it demands respect and a by-the-book approach. Nailing the mounting, wiring, and handling procedures is non-negotiable for a system that’s both dependable and safe.
Think of this as your field guide for getting a CT installed without any drama. Cutting corners here can lead to bad data, damaged equipment, or much, much worse.
Let's start with the absolute number one, most critical rule in the CT playbook. It’s one every seasoned pro has committed to memory.
The Golden Rule: Never Open the Secondary
If you only remember one thing about CTs, make it this: NEVER, EVER leave the secondary circuit open while the primary conductor is energized. An open-circuited CT is an incredibly dangerous situation that can create lethal voltages in a heartbeat.
Here’s why. A CT is built to push a small, manageable current through a closed loop—your meter, relay, etc. If you break that loop while the primary is still humming with current and creating a powerful magnetic field, the transformer will go into overdrive. It will try to force that current across the new gap by generating a massive voltage spike.
We're talking several thousand volts, instantly.
This isn't just a theoretical hazard. An open secondary can vaporize connected meters, melt the CT’s own insulation, and create a catastrophic arc flash and shock hazard for anyone standing nearby. It is, without a doubt, the single most dangerous mistake you can make with a CT.
So, before you even think about disconnecting a meter or relay from a live CT, you must short-circuit the secondary terminals first. This is usually done with a built-in shorting block or a simple jumper wire. This gives the secondary current a safe, complete path to travel, keeping the voltage under control.
Polarity: Getting the Direction Right
After the life-or-death rule of shorting the secondary, getting the polarity right is crucial for accurate measurement and for protective gear to do its job. Every CT has clear markings to show you the way.
H1 and H2 are for the primary side. H1 should always point toward the power source (the line side).
X1 and X2 are for the secondary side.
Lining these up correctly ensures the CT measures the direction of current flow properly. This is absolutely critical for things like power factor monitoring, directional fault relays, and any system that needs to know not just how much current is flowing, but which way it’s headed. Get it backward, and your power meter might run in reverse or a protective relay could completely miss a fault.
More Installation Best Practices
A few final rules of thumb will help you wrap up a clean, safe, and reliable install that will last for years.
Mount it Solid: Bolt the CT down securely so it can't vibrate or move. Any movement can put mechanical stress on the conductors over time.
Center the Conductor: For any window-type CT, make sure the primary conductor passes right through the middle of the opening. This gives you the strongest magnetic coupling and the most accurate reading.
Use the Right Wire: Don't skimp on the secondary wiring. Using a wire gauge that's too small for the distance will add extra burden and can throw your CT’s accuracy right out the window.
Check Your Connections: Before you walk away, give every terminal connection a final check to make sure it's tight. A loose connection is just an open circuit waiting to happen.
Treat these steps as mandatory on every job. It’s how you guarantee the CT will perform accurately and, most importantly, safely for its entire service life.
How to Select the Right CT for Your Application
This is where the rubber meets the road. Picking the right current transformer is where all the technical theory gets put into practice. A good choice means your equipment is protected, your meters are telling the truth, and your whole system runs like clockwork. This isn't just about checking a box on a parts list—it’s one of the most critical steps in designing a safe, efficient industrial system.
And it’s only getting more important. The need for precise energy monitoring is exploding. The global current transformer market, which sat at USD 2.33 billion in 2024, is expected to balloon to USD 5.41 billion by 2037. That tells you just how much industry is leaning on these components for control and efficiency. You can get more details on current transformer market trends and see how this growth affects sourcing.
So, how do you specify the perfect CT? You need a solid framework. Let's walk through the key decisions for the most common industrial jobs.
Selecting CTs for Motor Protection
Protecting a motor is all about handling that initial startup kick. A motor can draw 5 to 8 times its normal full load amps (FLA) for a few seconds when it first turns on. Your CT has to be beefy enough to take that inrush current without saturating, but still sensitive enough to give you a good reading during normal operation.
A good rule of thumb is to pick a CT ratio that’s about 125% to 150% of the motor's FLA. This simple step ensures the normal running current is right in the sweet spot of the CT's range, while the startup surge won't send it off the rails.
Let's say you have a motor with a 100A FLA. It might pull 600A on startup. A 200:5 ratio CT gives you plenty of headroom to handle that jolt, while still providing a crisp, clear signal to the protective relay once things settle down.
Specifying for UL-Listed Control Panels
When it comes to control panels, especially those that need a UL 508A listing, the game is all about compliance and safety. The CT you choose must be UL Recognized or Listed for that specific use. That's not a suggestion; it’s a hard requirement to get that final UL mark on the panel.
As you're laying out the panel, keep these things in mind:
Voltage Class: The CT’s insulation rating has to be higher than your system voltage. For a 480V system, you need a 600V class CT. No exceptions.
Physical Fit: Does it actually fit? Make sure the CT’s window size or physical footprint works in the often-cramped space of a control cabinet.
Burden Calculation: You have to do the math. Add up the total burden from your meters, relays, and even the wire itself to make sure the CT you pick can drive that load without sacrificing its accuracy.
Using non-listed components in a UL panel is a recipe for failed inspections, expensive rework, and project delays. Always, always verify the UL certification of your CTs with your supplier.
Choosing CTs for Switchgear
Medium-voltage switchgear is the big leagues. It demands an incredible level of reliability, making CT selection that much more rigorous. Here, we're almost exclusively talking about protection-class CTs that are specifically built to handle nasty fault conditions.
The key specs to nail down for switchgear are:
Voltage Rating: The CT must be rated for the system's voltage class, whether that's 5kV, 15kV, or even higher.
Protection Accuracy: Look for a "C" or "T" accuracy class (like C200). This is your guarantee that the CT will perform as expected when facing massive fault currents.
Basic Insulation Level (BIL): The CT needs a BIL rating high enough to survive the voltage spikes that come from lightning or switching surges.
By working through the primary current, system voltage, accuracy requirements, and physical constraints step-by-step, you can confidently spec the right CT for the job, every single time.
A Few Common Questions We Hear in the Field
Even when you have a good handle on the basics, a few practical questions always pop up out in the field. Let's tackle some of the most common ones we get from customers during design, installation, and troubleshooting.
Can I Use a 400:5 CT on a 200A Circuit?
You bet. In fact, it's often a smart move. Using a CT with a higher primary rating than your normal operating current is a great practice, especially for motor circuits where those inrush currents at startup can be way higher than the full-load amps.
A 400:5 CT on a 200A circuit is no problem at all. It just means the output signal will be proportionally smaller—in this case, 2.5 amps. As long as the relay or meter you've got hooked up can accurately read that lower current, your setup will be perfectly safe and reliable. The trick is to make sure the CT's rating can handle the maximum current it might ever see, not just the everyday load.
What Happens If a CT Is Installed Backwards?
Putting a CT in backwards (reversing the H1/X1 and H2/X2 polarity) won't blow anything up right away, but it will definitely throw your measurements for a loop. The CT will still tell you how much current is flowing, but it will report the direction as being 180 degrees out of phase.
This can cause some serious headaches in a couple of key areas:
Power Metering: For any device trying to measure power factor (kW, kVAR), the readings will be completely wrong. It might even show power flowing out of your system when it's actually flowing in.
Directional Relays: The protective relays that depend on current direction to spot a fault might not operate when they should—or worse, they might trip when there’s no reason to.
Always take a second to double-check your polarity markings during installation. It’s a simple step that can save you from some massive troubleshooting headaches down the line and ensures your protection gear actually works when you need it to.
Why Must the Secondary Always Be Shorted?
This is the single most important safety rule when working with CTs. If you leave the secondary open on an energized CT, it will try to force its current across that open gap. This creates an incredibly high—and potentially lethal—voltage. It's a surefire way to destroy connected equipment and creates a severe shock and arc flash hazard.
Before you even think about disconnecting a wire from the secondary terminals of a live CT, you must install a shorting jumper across them. This gives the induced current a safe place to go, keeping the voltage down to a near-zero, safe level.
Getting the details right on CT selection is critical for any industrial project. If you need some expert guidance on picking the right components for your UL-listed control panels, motor control centers, or switchgear, the team at E & I Sales is here to help. Contact us to make sure your system is designed for top-notch safety, accuracy, and reliability.
At its core, electrical maintenance is all about the systematic inspection, testing, and upkeep of a facility's electrical backbone. This isn't just about fixing things when they break; it's a proactive strategy to guarantee safety, boost reliability, and keep operations running smoothly. Think of it as moving beyond simple, reactive repairs to the strategic management of your most critical electrical assets. For any business where power is mission-critical, this is a core function, not an afterthought.
Understanding Your Facility's Electrical Health
Picture your facility's electrical system as its central nervous system. It's an intricate network that powers every single critical function, from the production lines on the floor to the servers humming away in the data center. Just like with your own health, ignoring the small warning signs or skipping routine check-ups can lead to a sudden, catastrophic, and very expensive emergency.
This is exactly where professional electrical maintenance services come in, shifting the whole conversation from an operational expense to a fundamental business strategy. The mission is simple but vital: keep your critical assets running at peak performance and stop failures before they ever happen. It’s the difference between a scheduled, low-cost tune-up and a frantic, high-cost emergency room visit for your most important equipment.
The High Cost of a Reactive Approach
Waiting for something to break is a gamble most industrial facilities simply can't afford to take. Unplanned downtime doesn't just stop production; it kicks off a disastrous domino effect of financial and operational problems. Every single minute a critical motor or control panel is offline translates directly into lost revenue, missed deadlines, and real damage to your brand's reputation.
This reactive, "fix-it-when-it-fails" model is a recipe for trouble, often leading to:
Greater Repair Costs: Emergency repairs almost always cost more. You're paying for overtime labor, expedited parts shipping, and the disruption of immediate, unplanned interventions.
Safety Hazards: Failing electrical components are a primary cause of workplace accidents, including devastating arc flash incidents and electrical fires that put your people in danger.
Reduced Equipment Lifespan: Running equipment to the point of failure causes massive wear and tear, forcing you into premature and costly replacements you hadn't budgeted for.
Proactive electrical maintenance transforms facility management from a constant state of fire-fighting to one of strategic oversight and control. It brings the predictability you need to budget effectively and operate safely.
The industrial sector gets it, which is why it accounts for a massive 37% of the electrical services market share. This demand is fueled by ever-increasing automation, heavy machinery, and the non-negotiable need for an uninterrupted power supply.
More recently, the explosion of AI-powered data centers has become a huge driver, generating 27% of new demand as companies scramble to upgrade their power distribution and cooling systems to handle the intense computing loads. You can discover more about these market trends and see how they're reshaping industrial electrical needs.
A Roadmap to Electrical Reliability
Building a truly resilient electrical system requires a maintenance plan that anticipates and addresses all the different ways things can go wrong. This guide will walk you through the essential maintenance philosophies that form the bedrock of a solid program. We'll break down the specific strategies—preventive, predictive, and corrective—that empower plant managers and operators to protect their assets, guarantee uptime, and ultimately, drive profitability.
Exploring Different Electrical Maintenance Strategies
Choosing the right approach to electrical maintenance is a lot like planning a trip. You wouldn't use a city map for a cross-country trek, and a one-size-fits-all plan is just as useless for a complex industrial facility. The strategy you land on determines whether you’re proactively steering toward peak reliability or just waiting for the next breakdown on the side of the road.
Getting a handle on the different philosophies is the first real step toward building a program that actually protects your assets and your bottom line. Each one strikes a unique balance between cost, effort, and risk. Let's break down the four main approaches to see how they fit into a bulletproof electrical wellness plan.
Preventive Maintenance: The Scheduled Oil Change
Preventive maintenance (PM) is the most familiar strategy out there. Think of it as the scheduled oil changes and tire rotations for your car. These are routine, time-based tasks done on a fixed schedule to cut down the chances of a failure. The goal is straightforward: fix known potential problems before they have a chance to cause a shutdown.
This approach runs like clockwork—daily, weekly, monthly, or annually—no matter what condition the equipment is actually in. For example, a PM plan might mandate that a motor's bearings get greased every three months or a switchgear's connections get torqued once a year. While it’s a massive improvement over doing nothing, its biggest flaw is that you can end up wasting time and money working on perfectly healthy equipment. You can get a head start on structuring these tasks with a good preventive maintenance schedule template.
Predictive Maintenance: The Expert Mechanic's Ear
Predictive maintenance (PdM) is a much smarter, condition-based game. Imagine a master mechanic who doesn't just change your oil on schedule but first listens to the engine, checks the fluids, and looks for subtle signs of wear. That's PdM in a nutshell—it uses advanced monitoring tools to "listen" for the faint whispers that signal future trouble in your electrical systems.
Instead of a calendar, PdM runs on data. Technicians use tools like infrared thermography to spot hot spots on connections, vibration analysis to detect bearing wear in motors, and oil analysis to check the health of transformers. Work is only done when the data says a problem is on the horizon.
This data-first approach enables "just-in-time" maintenance, focusing resources exactly where they're needed and stopping failures with incredible accuracy.
Corrective Maintenance: The Roadside Tow Truck
Corrective maintenance, often called reactive or breakdown maintenance, is the simplest (and most dangerous) strategy: wait for it to break, then fix it. This is the tow truck you call when your car is already smoking on the side of the highway. There’s zero planning, just pure reaction.
For non-critical equipment, this might seem cheap upfront, but it's by far the most expensive and disruptive approach for essential assets. A single failed motor on a production line can bring the entire plant to a standstill for hours or days, racking up financial losses that dwarf the cost of any proactive plan. Emergency repairs almost always mean overtime labor, rush shipping for parts, and the risk of secondary damage to other components.
Reliability-Centered Maintenance: The Custom-Built Itinerary
Reliability-Centered Maintenance (RCM) isn’t just a single tactic; it's a complete strategic framework. It’s like creating a custom travel itinerary that uses different modes of transport—flights for long hauls, scenic trains for the countryside, and walking for city exploring—all based on what’s most critical and efficient for the journey.
RCM starts by analyzing each piece of equipment to understand its function, how it can fail, and what the consequences of that failure would be. From there, it assigns the smartest maintenance strategy for the job.
Critical Assets: A vital production motor gets the full predictive maintenance treatment.
Important but Redundant Systems: A backup pump might be put on a simple preventive schedule.
Non-Essential Components: A light fixture in a storage closet? It's left to corrective maintenance.
This intelligent, blended approach makes sure maintenance resources are spent where they matter most, pushing plant reliability to the max while cutting out unnecessary costs. When putting these strategies into practice, a well-structured maintenance plan template is essential for documenting and executing your tailored approach effectively.
To help you decide, here’s a quick rundown of how these four strategies stack up against each other.
Comparing Electrical Maintenance Strategies
Maintenance Type
Core Principle
Best For
Key Benefit
Preventive
Time-based actions on a fixed schedule.
Standard equipment with known failure patterns.
Simple to implement, reduces obvious failures.
Predictive
Condition-based actions triggered by data.
Critical, complex assets where failure is costly.
Prevents failures, optimizes resource use.
Corrective
Run-to-failure; fix it after it breaks.
Non-essential, low-cost, redundant items.
Lowest upfront cost (but highest failure cost).
Reliability-Centered
A strategic mix based on asset criticality.
Entire facilities aiming for optimal reliability & cost.
Maximizes overall plant performance and efficiency.
Ultimately, by combining these different philosophies, a facility can build a truly resilient, efficient, and cost-effective operational environment.
Essential Tools and Testing Methods That Prevent Failure
To truly get ahead of equipment failure, you have to stop reacting and start predicting. This shift requires the right diagnostic tools—specialized methods that act like an advanced medical screening for your electrical assets. They let seasoned technicians see invisible problems and hear the faintest whispers of component wear long before they can cause a catastrophic shutdown.
Effective predictive maintenance is all about gathering the right data. By moving beyond simple visual checks, teams can diagnose the health of motors, switchgear, and transformers with incredible precision. This allows maintenance to be scheduled with surgical accuracy, saving time, slashing costs, and preventing the massive disruption of unplanned downtime.
The diagram below shows where these advanced methods fit into the big picture. It’s a hierarchy of maintenance strategies, demonstrating how predictive techniques are a cornerstone of a robust Reliability-Centered Maintenance (RCM) program.
As you can see, while fixing things after they break (corrective) is the baseline, it's the proactive pillars—preventive and predictive—that support a truly strategic RCM approach.
Infrared Thermography: The Electrical MRI
One of the most powerful tools in any technician's bag is infrared (IR) thermography. Think of it as giving your electrical systems an MRI scan. It creates a visual map of heat, instantly showing you "fevers" in components that look perfectly normal to the naked eye. These hot spots are the classic tell-tale sign of a problem brewing.
Loose connections, overloaded circuits, and failing components all generate excess heat before they give up completely. An IR scan can pinpoint these exact locations in panels, motor control centers, and switchgear, allowing for targeted, efficient repairs. A regular thermographic survey is one of the single fastest and most effective ways to prevent electrical fires and major equipment failures.
Vibration Analysis: The Motor Stethoscope
For anything that spins—motors, pumps, fans—vibration analysis acts like a stethoscope. Every piece of machinery has a unique vibration "signature" when it's running smoothly. As parts like bearings, gears, or shafts begin to wear down, that signature changes in subtle but perfectly measurable ways.
Skilled technicians use specialized sensors to capture this data and interpret it. It allows them to spot issues like:
Bearing Wear: The most common cause of motor failure, easily identified by its distinct vibration pattern.
Misalignment: When a motor and the machine it drives aren't perfectly lined up, it creates stress that vibration analysis can spot immediately.
Imbalance: Problems with fan blades or rotors cause a detectable wobble that signals a need for rebalancing before something gives way.
Catching these issues early prevents catastrophic mechanical failures that can destroy an expensive motor and grind production to a halt for days.
Oil Analysis and Circuit Breaker Testing
Beyond heat and vibration, a few other specialized tests provide critical health data for your most valuable assets. These are essential for maintaining the core of your power distribution system, especially in large-scale industrial plants.
Transformer Oil Analysis is like a blood test for your transformers. A small sample of the insulating oil is sent to a lab to be checked for dissolved gases, moisture, and dielectric strength. The results reveal the internal health of the transformer, flagging things like internal arcing or insulation breakdown long before they lead to a major outage.
Circuit Breaker Injection Testing is about making sure your primary safety devices will actually do their job when you need them most. This test involves sending a simulated fault current through a breaker to verify that it trips within the manufacturer's specified time. It confirms that your last line of defense against a catastrophic overcurrent is ready and waiting.
The market certainly reflects the growing importance of these services. The global substation maintenance market, currently valued at $42.89 billion, is projected to nearly double to $84.95 billion by 2034. This boom is driven by major grid reliability upgrades worldwide. You can explore detailed insights into the substation maintenance market for a deeper dive.
By combining these advanced testing methods, a comprehensive electrical maintenance program moves far beyond guesswork. It provides actionable intelligence, enabling you to manage assets based on their actual condition, not just a date on a calendar.
How to Navigate Critical Safety and Compliance Standards
Trying to untangle the web of regulations for industrial electrical work can feel overwhelming. But these standards are far from being just bureaucratic red tape. They are the actual blueprints for a safe, reliable, and legally compliant operation.
Think of them as the common language spoken between your facility, your maintenance team, and even your insurance provider. Everyone is on the same page, and everyone is protected.
Following these standards is the bedrock of any serious electrical maintenance services program. It's a direct path to cutting operational risk, keeping your people out of harm's way, and proving you're committed to quality. This isn't about box-ticking; it's about building a genuine culture of safety that lets plant managers sleep at night.
The Cornerstone of Electrical Workplace Safety: NFPA 70E
When it comes to electrical safety in the workplace, the National Fire Protection Association's NFPA 70E is the undisputed heavyweight champion. Its entire mission is to shield workers from the devastating risks of electric shock, electrocution, and arc flash. This isn't just a rulebook; it's a field guide for building a safety program from the ground up.
NFPA 70E gets specific about:
Safe Work Practices: It details the step-by-step procedures for de-energizing equipment and confirming an electrically safe work condition before a single tool is picked up.
Arc Flash Risk Assessment: The standard requires facilities to identify arc flash hazards, calculate their potential intensity, and clearly label equipment with warning information. For a deeper dive, check out our guide to arc flash hazard analysis.
Personal Protective Equipment (PPE): It lays out exactly what kind of flame-resistant clothing and protective gear are needed for the specific level of hazard present.
Adhering to NFPA 70E isn't optional—it’s how you protect your people. It forces a fundamental shift from reacting to accidents to proactively designing them out of the system.
Setting the Bar for Equipment Maintenance: IEEE Standards
While NFPA 70E is all about protecting people, the Institute of Electrical and Electronics Engineers (IEEE) provides the technical playbook for maintaining the equipment itself. These aren't laws, but rather consensus-based best practices written by the industry's top experts.
The IEEE Std 3007 series, for instance, gives incredibly detailed guidance on maintaining industrial power systems. These are the "how-to" manuals for properly testing and servicing everything from your medium-voltage switchgear and transformers to motors and cables. Following IEEE standards means your maintenance is effective, consistent, and grounded in solid engineering.
UL Standards as a Mark of Quality and Safety
Finally, UL (Underwriters Laboratories) standards act as the baseline for equipment quality. When you see that UL mark on a control panel, breaker, or motor, it means it has been independently tested and certified to meet tough safety and performance criteria.
For any facility manager, insisting on UL-listed components is the first step in building a truly reliable electrical system. It gives you a baseline guarantee that the gear you're installing is free from known hazards and built to perform. When your maintenance partner uses UL-approved parts for repairs, they are preserving the integrity and safety rating of your entire system.
Measuring the ROI of Your Maintenance Program
So, how do you prove that your maintenance budget is a strategic investment and not just another line-item expense? For plant managers and engineers, justifying the cost of proactive electrical maintenance services is a constant battle. The trick is to shift the conversation from cost to value by showing a clear, compelling Return on Investment (ROI).
This isn't about fuzzy, abstract benefits. It's about hard numbers that speak the language of business. By tracking the right metrics and putting a dollar figure on the failures you've prevented, you can build an undeniable case for your program.
Key Performance Indicators That Tell the Story
Before you can even think about calculating ROI, you need data. Key Performance Indicators (KPIs) are the vital signs of your equipment's health and your maintenance program's effectiveness. They provide the cold, hard evidence needed to show progress and defend your strategy.
Two of the most powerful metrics you can track in any industrial facility are:
Mean Time Between Failures (MTBF): This is just a fancy way of saying, "How long does a piece of equipment run before it breaks?" A rising MTBF is a direct signal that your maintenance efforts are working, extending equipment life and stopping breakdowns before they happen.
Overall Equipment Effectiveness (OEE): This one gives you the big picture. OEE looks at three things—availability (uptime), performance (speed), and quality (good parts)—to give you a single score for your productivity. Proactive maintenance directly pumps up that OEE score by crushing downtime and keeping machines running as they should.
Tracking these KPIs transforms maintenance from a perceived "cost center" into a real driver of operational excellence.
The Simple Formula for Calculating Maintenance ROI
Once your KPIs are providing the necessary context, you can calculate the direct financial return of your program. The formula is refreshingly simple, but don't let that fool you—it's incredibly powerful.
ROI = (Cost of Downtime Avoided – Cost of Maintenance) / Cost of Maintenance
What this formula does is frame your maintenance spending against the catastrophic losses it prevents. To use it, you first have to get a real handle on the true cost of unplanned downtime. That includes lost production, labor costs for an idle team, and even potential penalties for missing deadlines.
It's no surprise that the demand for reliable operations is fueling market growth. The electrical services market was valued at $773.3 billion and is expected to hit $1,117.67 billion by 2034. The repair and maintenance segment is actually seeing the fastest growth, which just underscores how critical these specialized services are for keeping facilities running.
A Real-World ROI Example
Let's put this into practice. Imagine a manufacturing line that brings in $20,000 per hour in revenue. During a routine predictive maintenance check, a technician spots the early signs of bearing wear on a critical drive motor.
Cost of Proactive Maintenance: A technician spends four hours replacing the bearings during a planned shutdown. The total cost, including labor and parts, comes out to $2,500.
Cost of Failure (Downtime Avoided): If that bearing had failed catastrophically during a production run, it would have caused an estimated eight hours of unplanned downtime. That's $160,000 in lost revenue right there. Add another $15,000 for emergency repairs, a brand-new motor, and fixing collateral damage. The total cost of that single failure would have been a staggering $175,000.
Now, let's plug these numbers back into our ROI formula:
ROI = ($175,000 – $2,500) / $2,500 = 69
This means for every single dollar spent on proactive maintenance, the facility got a $69 return. That's the kind of clear, quantifiable result that justifies any maintenance budget. When you focus on the data, you prove that skilled electrical maintenance isn’t a cost—it’s one of the best investments you can possibly make in your facility's future. For more on these techniques, check out our deep dive on predictive maintenance for manufacturing.
Choosing the Right Electrical Maintenance Partner
Picking a provider for your plant's electrical maintenance is one of the most critical decisions you'll make. This isn't just about hiring another contractor; it's about finding a genuine partner who acts as a seamless extension of your own team. The right choice brings stability and compliance, while the wrong one can inject risk and chaos into your operations.
It's tempting to focus on the price tag, but you have to look past the initial bid. A lowball offer might seem attractive, but it often hides a lack of real-world experience, flimsy safety protocols, or an inability to give your facility the deep support it actually needs. The real goal is to find a partner who delivers long-term value, not just a quick, cheap fix.
Verifying Core Competencies and Experience
The first thing you need to do when vetting a potential partner is to dig into their qualifications and on-the-floor experience. Don't just take their word for it. Ask for concrete proof of their expertise, especially with the specific types of industrial equipment you rely on every day.
A solid evaluation should always cover these points:
Certifications and Licensing: Are their electricians state-licensed? That’s the bare minimum. For specialized predictive work, you need to see certifications in things like thermography (e.g., Level I or II Certified Thermographer) or vibration analysis.
Direct Equipment Experience: You need to know if they have a documented history with your specific models of MV switchgear, motor control centers, or PLCs. Ask them for case studies or, even better, let you talk to a reference from a facility with a similar setup.
Comprehensive Reporting: A top-tier partner doesn’t just fix things; they document everything. They should provide detailed reports after every service call, complete with thermographic images, test results, and crystal-clear recommendations. This paper trail is invaluable for compliance and for tracking the health of your equipment over time.
Assessing Safety Programs and Business Acumen
A potential partner's commitment to safety is completely non-negotiable. Frankly, it’s a direct reflection of their overall professionalism. A well-documented, robust safety program is a clear sign that they value their people, your people, and your facility. Insist on seeing their written safety plan, paying close attention to how they adhere to NFPA 70E standards for electrical workplace safety.
The quality of a provider's safety culture is often the best predictor of their overall work quality. A team that cuts corners on safety will likely cut corners on technical execution as well.
It's also smart to look at how they run their business. How do they find new clients? It might seem unrelated, but a company that invests in effective digital marketing strategies for electricians shows they're proactive and building a stable, growing business. By focusing on these crucial areas—hard technical skills, documented safety, and a healthy business—you can find a maintenance partner who will truly protect your assets and help you hit your operational goals.
Have Questions? We Have Answers.
Even with a solid plan, you're bound to have a few questions when setting up an electrical maintenance services program. Here are some of the most common things we hear from plant managers and engineers, along with some straight answers.
How Often Should We Be Doing This?
There's no magic number here—it all comes down to your equipment's age, how hard it works, and how critical it is to your operation.
A great place to start is the guidance from NFPA 70B. It generally recommends annual check-ups for the big stuff, like your switchgear and transformers. But think of that as a baseline, not a rule.
A one-size-fits-all schedule just doesn't cut it in the real world. That crucial motor on your main production line? It might need quarterly predictive checks with vibration analysis to stay ahead of trouble. On the other hand, less critical gear might be perfectly fine with a simple annual inspection. A good partner will help you map this out based on what you actually have on the floor.
What's the Difference Between Maintenance and Testing?
It's a great question. Think of it like a doctor's visit: testing is the diagnosis, and maintenance is the treatment. You need both for a healthy system.
Maintenance is the hands-on work. It’s about cleaning components, torquing connections, and lubricating moving parts. This is the "doing" part of the job.
Testing is the data-gathering part. This is where we use specialized tools—like infrared cameras or circuit breaker testers—to get a clear picture of your equipment's health. It tells us what to do and where to focus our efforts.
They work hand-in-glove. For instance, a thermographic test might flag a hot, loose connection. The hands-on maintenance is then tightening that connection to fix the problem before it becomes a failure.
Can This Proactive Stuff Really Save Us Money?
Absolutely. It feels like another line item on the budget, but proactive maintenance pays for itself by helping you dodge the massive costs of unplanned downtime and emergency calls.
Fixing a minor issue like a loose connection during a scheduled visit might cost a few hundred dollars. It's planned, it's efficient, and it's done.
But if you let that same loose connection fail? Now you're looking at a catastrophic shutdown. The costs explode—lost production, emergency equipment replacement, and overtime for your crew. That bill can easily climb into the tens or even hundreds of thousands of dollars. The ROI on being proactive is one of the best investments you can make.
At E & I Sales, we build and execute maintenance strategies that protect your most valuable assets. Our team brings deep technical knowledge and real-world field experience together to keep your plant running safely and productively. To see how we can design a program for your facility, let's connect at eandisales.com.
A medium voltage circuit breaker is essentially a heavy-duty, automatic switch built to protect electrical gear running anywhere from 1,000 volts (1kV) to 38,000 volts (38kV). It’s a core safety device that instantly trips during a dangerous overload or short circuit, stopping catastrophic equipment damage in its tracks and keeping people safe.
Why a Medium Voltage Circuit Breaker Is So Critical
Don't think of it as just an on/off switch. A medium voltage circuit breaker is more like an incredibly fast, intelligent guardian standing watch over your most expensive electrical assets. Its whole job is to protect things like massive motors, transformers, and generators from the destructive power of an electrical fault.
Without that protection, a sudden short circuit could unleash an unbelievable amount of energy. We're talking about the kind of event that leads to million-dollar equipment losses and crippling downtime.
These breakers operate in the medium voltage range, the power backbone for heavy industrial machinery, big manufacturing plants, and utility distribution grids. In these settings, staying operational is everything. The breaker's ability to sniff out a fault and shut it down in milliseconds is the only thing standing between a minor hiccup and a full-blown facility blackout.
The Guardian of Your Power System
A medium voltage circuit breaker is the first line of defense when things go wrong electrically. But its role is much bigger than just flipping a switch. It juggles several critical jobs to keep your system both safe and reliable.
At its core, the breaker has a few main responsibilities:
Asset Protection: It shields high-value equipment from fault currents that can cause immediate, irreparable damage.
Personnel Safety: It dramatically cuts down the risk of an arc flash—a violent, explosive event that can cause severe injury or death. By clearing faults instantly, the breaker contains that hazardous energy.
Operational Continuity: It stops a localized problem from cascading through the system and causing a widespread outage, helping you avoid staggering production losses.
A single unplanned outage can easily cost an industrial facility tens of thousands of dollars per hour. A medium voltage circuit breaker is a non-negotiable part of mitigating this huge financial risk by keeping the electrical system stable.
When it comes down to it, any facility running on medium voltage power simply can't do without one. It’s the silent hero in the electrical room that makes safe, reliable operations possible. Its technical function is directly tied to the real-world financial and safety results that plant engineers and project managers depend on.
Exploring the Core Circuit Breaker Technologies
At the very core of any medium voltage circuit breaker is one job: to kill a powerful electrical arc, and do it safely. Think of it this way: when a fault happens, the breaker's contacts fly apart. But the system's massive electrical energy doesn't just stop; it tries to jump that gap, creating a destructive, super-hot plasma arc.
The specific technology used to extinguish—or "quench"—that arc is what defines the breaker. It dictates everything from performance and reliability to where it can be used. Over the years, engineers have developed four primary methods, each using a different medium (like a vacuum, a gas, or a liquid) to smother the arc. Getting to know these is the first step in choosing the right guardian for your electrical system.
This concept map breaks down the essential protective roles a medium voltage circuit breaker fulfills.
As you can see, it's not just about stopping a fault. The breaker is a comprehensive shield, protecting expensive equipment and, most importantly, keeping people safe.
Vacuum Circuit Breakers (VCB)
Today, Vacuum Circuit Breakers (VCBs) are the undisputed workhorses of the medium voltage world. The principle behind them is pure genius in its simplicity: an arc can't survive if there's nothing for it to burn. Inside a VCB, the contacts are sealed within a ceramic bottle, called a vacuum interrupter, which is pulled to a near-perfect vacuum.
When a fault forces the contacts apart, an arc tries to form, but it finds almost no gas molecules to ionize and sustain itself. The vacuum has an incredibly high dielectric strength, meaning it's a terrible conductor. This causes the arc to die out almost instantly, usually the very first time the AC current waveform crosses zero.
This elegant design delivers some major wins:
Minimal Maintenance: With everything sealed inside the interrupter, there are no arc byproducts to clean up. This translates to a very long service life with little to no upkeep.
High Reliability: Fewer moving parts and no gas or oil to monitor means VCBs are exceptionally dependable. They just work, time after time.
Environmental Safety: Vacuum interrupters contain no harmful substances, making them a clean and green choice for indoor switchgear, hospitals, and data centers.
This powerful combination of reliability and low maintenance is why VCBs have become the go-to choice for most industrial and commercial applications. To really get into the weeds, you can learn more about how vacuum circuit breakers operate and see why they're so dominant.
SF6 Circuit Breakers
For a long time, Sulfur Hexafluoride (SF6) gas was the gold standard for high-voltage and high-power interruption, especially in big utility substations. SF6 is an amazing insulator and is incredibly good at "soaking up" the free electrons that keep an electrical arc alive.
Inside an SF6 breaker, a high-pressure puff of the gas is blasted directly at the arc as the contacts open. The gas rapidly cools the plasma and captures the charge-carrying electrons, snuffing out the arc and preventing it from re-igniting.
SF6 gas is roughly 100 times more effective at quenching an arc than plain air. This incredible efficiency allows SF6 breakers to be much more compact than other types, making them perfect for space-saving Gas-Insulated Switchgear (GIS).
But there's a huge catch. SF6 is the most potent greenhouse gas on the planet, with a global warming potential more than 24,000 times that of carbon dioxide. As environmental regulations get stricter, the entire industry is now shifting away from SF6 in favor of cleaner alternatives.
Air Circuit Breakers (ACB)
Air Circuit Breakers (ACBs) are an older technology, but you'll still find them chugging away in many legacy systems. Their method is straightforward: they use a powerful blast of compressed air to literally blow the arc out, just like a candle. This blast physically stretches, cools, and deionizes the arc until it can no longer sustain itself.
The downside is the massive infrastructure needed to make this happen—air compressors, high-pressure storage tanks, and a complex network of valves. This makes them maintenance-heavy and noisy. Their sheer size and loud operation mean you won't see them in new installations, but they remain in service at older power plants and heavy industrial sites.
Oil Circuit Breakers
The oldest of the bunch, Oil Circuit Breakers, submerge their contacts in a large tank of insulating oil. When the contacts open under fault, the intense heat of the arc instantly vaporizes some of the surrounding oil. This creates a massive, high-pressure bubble of hydrogen gas.
The turbulence from this gas bubble cools and deionizes the arc path, eventually extinguishing it. While it was an effective method for its time, oil-filled breakers are a significant fire hazard and require messy, frequent maintenance to filter and test the oil. Today, they are considered completely obsolete and are prime candidates for being retrofitted with modern vacuum technology.
Comparison of Medium Voltage Circuit Breaker Technologies
To help put it all together, here's a quick side-by-side look at how these four technologies stack up. Each has its place, but the trends clearly favor vacuum technology for most modern applications.
Technology Type
Arc Quenching Medium
Key Advantages
Common Disadvantages
Typical Applications
Vacuum (VCB)
Near-perfect vacuum
High reliability, low maintenance, long life, environmentally friendly, compact
Higher initial cost for some ratings
Industrial plants, commercial buildings, data centers, renewable energy
SF6 Gas
Sulfur Hexafluoride (SF6)
Excellent interruption capability, compact design (especially in GIS)
Fire hazard, messy and frequent maintenance, environmental spill risk
Obsolete; found only in very old installations awaiting retrofit
Choosing the right breaker means weighing these pros and cons against your system's specific needs, budget, and long-term maintenance strategy.
Decoding Ratings and International Standards
Staring at the spec sheet for a medium voltage circuit breaker can feel like trying to decipher a secret code. But those numbers aren't just for engineers to debate—they're the absolute key to keeping your system safe, reliable, and up to code.
Think of these ratings as the breaker's DNA. Getting them wrong is like asking a pickup truck to pull a freight train. It’s not a question of if it will fail, but when, and the fallout can be catastrophic. Let's break down the most important specs so you can read any nameplate like a seasoned pro.
Core Electrical Ratings Explained
Three numbers tell you almost everything you need to know about a breaker's capabilities. They define where it can safely operate, how much juice it can handle day-in and day-out, and how much raw power it can shut down in an emergency.
Rated Maximum Voltage (kV): This is the voltage ceiling for the breaker. A breaker rated for 15kV, for example, is perfectly at home on a 13.8kV system. But putting that same breaker on a higher voltage circuit is a recipe for insulation failure and a serious safety hazard.
Continuous Current (Amps): This tells you how much current the breaker can carry 24/7 without breaking a sweat or overheating. It needs to match the normal load of the circuit it's protecting. A 1200A breaker will happily carry that load all day long, but it’s designed to trip if the current stays above that for too long. For a closer look at this, our guide on sizing circuit breakers is a great resource.
Interrupting Capacity (kA): This might be the most important safety rating of all. It’s the maximum short-circuit current the breaker can stop cold without destroying itself. A fault isn't a trickle; it's a tidal wave of thousands of amps in a fraction of a second. If a breaker rated for 25kA gets hit with a 40kA fault, it simply can't contain the energy, leading to a violent failure and a potential arc flash disaster.
These three ratings are the pillars that define the breaker's safe operating limits.
Navigating Global Standards: IEC vs. IEEE
Just like the world has different languages, the electrical industry has different standards. For medium voltage gear, the two big players are the IEC (International Electrotechnical Commission) and the IEEE (Institute of Electrical and Electronics Engineers), which works closely with ANSI in North America.
Understanding the difference between IEC and IEEE/ANSI standards isn't just academic. It’s critical if you're working on international projects or sourcing equipment from different parts of the world. Both are focused on safety, but they get there with different testing philosophies.
Here’s a quick rundown of what that means in the real world:
Standard
Geographic Focus
Design Philosophy
Key Difference Example
IEEE/ANSI
Primarily North America
Puts a heavy emphasis on robust, often larger designs with built-in safety margins for handling overloads and faults.
Ratings are typically listed in standardized steps (e.g., 1200A, 2000A), and breakers undergo a specific sequence of fault interruption tests.
IEC
Global (Europe, Asia, etc.)
Focuses on performance-based ratings that often result in more compact, application-specific equipment.
The "rated" value is treated as the absolute maximum, with less of an inherent safety margin built-in. Testing methods can also vary.
This isn't just a detail on a datasheet. You often can't just swap an IEC-rated breaker for an IEEE-rated one, even if the main numbers seem to match. This is a big reason why medium voltage circuit breakers are such a huge part of the global market—their application in industrial plants, utility grids, and renewable energy projects absolutely demands compliance with local standards. When you're specifying a breaker, you have to make sure it's built for the standards of the region where it's being installed. It’s the only way to guarantee both performance and legal compliance.
From Spec Sheet to Site: A Practical Checklist for Your MV Breaker
Knowing a circuit breaker's ratings is one thing; successfully getting it installed and commissioned in the real world is another game entirely. This is where the rubber meets the road.
Moving from procurement to operation is a minefield of critical decisions. One wrong turn can lead to project delays, blown budgets, or worse, a serious safety incident.
Think of this as your field guide for getting it right the first time. We'll walk through a structured checklist for both choosing the right breaker and installing it safely.
Key Selection Criteria Beyond the Basics
Picking the right medium-voltage breaker means looking past just the voltage and current numbers on the nameplate. The environment it's going to live in and the specific job it has to do are just as critical. Overlooking these details is a classic—and costly—mistake.
Here are the crucial factors you can't afford to ignore:
Environmental Conditions: Where is this breaker going? A standard unit might need to be de-rated at high altitudes because thinner air doesn't insulate as well. Extreme heat, cold, humidity, or corrosive salt air all demand specialized enclosures and materials.
Specific Load Types: Let's be honest, not all electrical loads behave the same. A breaker protecting a massive motor needs to ride out the intense inrush current on startup without a nuisance trip. Capacitor banks are another beast entirely, creating unique voltage stresses that demand a breaker specifically rated for that duty.
Control System Integration: How does this breaker talk to the rest of the plant? Modern facilities need breakers that play nice with SCADA or other control platforms. That means specifying the right control voltage, getting the auxiliary contacts you need for status feedback, and ensuring the communication protocols match up.
This level of upfront planning is the foundation of a reliable system. For a wider view on how these pieces fit together, our guide on electrical substation design is a great place to start.
On-Site: Installation Best Practices
Once the right breaker shows up on site, the focus shifts to installation. This is a high-stakes job. We're talking about a heavy, sensitive piece of equipment that acts as the gateway for immense electrical power. Precision and safety are not optional.
Stick to these proven steps for a smooth installation:
Pre-Installation Inspection: Before it even comes off the truck, give it a thorough look-over for shipping damage. Check the integrity of the vacuum interrupters, insulators, and the main frame.
Safe Handling and Mounting: Always use the lifting points the manufacturer designed. No exceptions. Before you rack the breaker in, make sure the switchgear cubicle is spotless—no dust, debris, or forgotten tools. Confirm it’s seated securely and properly grounded.
Meticulous Electrical Connections: This is where so many failures begin. Every single power cable connection must be torqued to the exact value in the manual. Loose connections create hot spots and can lead to catastrophic failure. Make sure all the control wiring is routed neatly and secured so it won't get pinched or strained.
Safety is everything. The work area must be fully de-energized, locked out, and tagged out (LOTO). Everyone involved needs the proper Personal Protective Equipment (PPE). Even residual voltage can be lethal at this level.
Attention to detail here is more critical than ever. The global demand for reliable power is exploding, driven by a massive surge in renewable energy projects and grid modernization. That puts MV breakers right at the center of industrial power reliability—a core reason companies like E & I Sales engineer them into their advanced MV switchgear solutions. You can read more about this market's projected growth.
Final Checks: Commissioning and Energization
Before you flip the switch, there's one last critical phase: commissioning. This is your final chance to run a series of tests to prove the breaker is ready to do its job.
These pre-energization checks are non-negotiable:
Insulation Resistance Test: This "megger" test verifies that all the insulation is sound and hasn't been compromised by moisture or contamination.
Contact Resistance Test: A "ductor" test measures the resistance across the main contacts to ensure you have a solid, low-impedance path for current to flow.
Functional Trip Tests: You have to prove it works. Manually and electrically operate the breaker to confirm the trip coil, closing coil, and all the associated relays are responding exactly as they should.
Only after every one of these tests passes and is documented should you even think about energizing the breaker. This methodical, checklist-driven approach is what separates a successful project from a future failure, laying the groundwork for decades of safe, reliable operation.
Mastering Maintenance, Retrofits, and Upgrades
A medium voltage circuit breaker that runs reliably year after year isn't a matter of luck; it's the outcome of a smart asset management strategy. Being proactive isn't just about fixing things when they break—it's about getting ahead of failures before they ever happen, making sure your critical systems are always ready to go.
This means doing more than a quick visual inspection. It demands a disciplined approach to testing that can actually predict trouble on the horizon, giving you a chance to act. It also means knowing when it's time to stop patching up old, obsolete technology and make the strategic decision to upgrade. This forward-thinking approach is what separates a truly reliable facility from one that’s always putting out fires.
Building a Predictive Maintenance Program
Think of predictive maintenance like a doctor running routine tests during an annual physical. It uses diagnostic tools to monitor the health of your circuit breaker over time. The goal is to get hard data that helps you spot gradual wear and tear long before it causes a catastrophic failure.
Any solid program for a medium voltage circuit breaker should be built on three core diagnostic tests:
Insulation Resistance Test: Often just called a "megger" test, this is a fundamental health check for the breaker's insulation. By applying a high DC voltage, it checks for any current leakage that could point to moisture, contamination, or aging insulating materials. If you see those resistance readings trending downward over time, that's your warning sign.
Contact Resistance Test: This one is simple but critical. It measures the resistance across the main contacts when the breaker is closed. High resistance means hot spots, wasted energy, and potentially a violent failure under load. What you want to see is a low, stable micro-ohm reading, which confirms a clean, solid connection.
Functional Trip Tests: You can't just assume a breaker will do its job; you have to prove it. Functional tests are exactly what they sound like—you operate the trip and close circuits to make sure every mechanical and electrical part responds correctly and within the specified time. This is how you confirm the breaker can actually protect your system when it matters most.
These checks are the backbone of a maintenance strategy that keeps your gear dependable.
The Case for Retrofitting Legacy Breakers
Sooner or later, you reach a point where nursing along an old circuit breaker—especially those ancient oil or air-blast types—just doesn't add up anymore. The constant maintenance, the serious fire risk, and the nightmare of finding spare parts all build a powerful business case for a modern upgrade. This is where a retrofit comes in.
A retrofit is a smart solution where you replace the outdated, high-maintenance guts of a legacy breaker with a modern, reliable vacuum interrupter assembly. This new core is specifically designed to roll right into the existing switchgear cubicle. This means you minimize downtime and avoid the massive expense of replacing the entire switchgear lineup.
Retrofitting is more than just a technical fix; it's a strategic business move. By swapping an aging oil-filled medium voltage circuit breaker for a vacuum retrofit, facilities can slash maintenance costs by up to 80% while making huge gains in personnel safety and system reliability.
The benefits are immediate. You get the performance, safety, and reliability of a brand-new breaker with a fraction of the cost and installation headache.
Tangible Business Outcomes of an Upgrade
Upgrading your medium voltage circuit breakers isn't just an expense on a spreadsheet; it's a real investment with a clear and measurable payback. The technical improvements you make translate directly into business outcomes that plant managers and financial officers can get behind.
Let's connect the dots from the technical side to the business value:
Reduced Total Cost of Ownership: Modern vacuum breakers are practically maintenance-free. This completely eliminates the messy, expensive annual servicing that old oil breakers demand, cutting down on labor, materials, and hazardous waste disposal fees.
Enhanced Operational Safety: Getting flammable oil out of your switchgear is a massive win for fire prevention. On top of that, the faster clearing times of modern breakers dramatically reduce arc flash incident energy, making the entire work area safer for your people.
Decreased Unplanned Downtime: Let's face it, legacy breakers are a common source of failure. A modern retrofit gives you a huge boost in reliability, preventing the costly production losses that come from an unexpected outage.
When you decide to retrofit, you’re not just buying new equipment. You’re investing in a safer, more efficient, and more profitable operation for years to come.
The Future of Circuit Protection
The world of circuit protection is changing, and fast. What was once a simple protective device is now becoming a smart, data-driven cornerstone of a more reliable power grid, thanks to digitalization and a serious push for sustainability.
Think of it this way: the medium voltage circuit breaker is evolving. It's no longer just sitting there waiting for a fault. Modern breakers are packed with Internet of Things (IoT) sensors and advanced connectivity, turning them into self-monitoring assets. They're constantly tracking their own health—everything from internal temperature and how many times they've operated to the mechanical stress on their parts.
This firehose of data is what makes predictive maintenance a reality. Instead of scrambling when a failure brings everything to a halt, facility managers can now see problems coming. This transforms unexpected downtime into a scheduled, manageable maintenance event.
The Rise of Sustainable Alternatives
At the same time, the industry is making a necessary shift away from older technologies with a heavy environmental footprint. For years, Sulfur Hexafluoride (SF6) gas was the go-to for its fantastic insulating capabilities. The problem? It’s also a seriously potent greenhouse gas, and new global regulations are rightly pushing it out the door.
Stepping in to fill the gap is a new generation of eco-friendly alternatives. These technologies are engineered to deliver the same, if not better, performance without the environmental baggage, helping companies meet their ESG goals and comply with tougher government rules.
This innovation couldn't come at a better time. The market is absolutely booming, especially in the Asia-Pacific region, where huge industrialization projects and government-backed power infrastructure upgrades are driving demand. This explosive growth creates massive opportunities for global packagers like E & I Sales to deliver integrated MV switchgear and control systems. If you want to see the numbers behind this expansion, check out the latest market research on medium voltage breakers.
Navigating the Next Generation of Protection
This new era offers incredible potential, but it also brings a new layer of complexity. Picking the right technology, tying it into your existing control systems, and actually making sense of all the new data requires real-world expertise.
The future of grid reliability isn't just about faster breakers; it's about smarter systems. Leveraging new technology effectively means future-proofing your operations against both technical faults and evolving regulations.
This is where working with an experienced system integrator becomes so important. A good partner doesn't just help you choose the right digitally-enabled, sustainable medium voltage circuit breaker. They make sure it’s integrated seamlessly into your switchgear and automation platforms, turning new technology into a real-world advantage for your efficiency, safety, and long-term reliability.
Common Questions, Answered
Even after getting into the weeds of breaker technology, a few questions always seem to pop up. Let's tackle some of the most common ones to help tie everything together.
What’s the Real Difference Between a Medium Voltage and a Low Voltage Breaker?
It all comes down to the operating voltage and how they put out an electrical fire—the arc. A low voltage breaker (anything under 1,000V) is dealing with relatively low-energy faults, so simple air is often enough to snuff out the arc.
But a medium voltage circuit breaker (1kV-38kV) has a much bigger job. It has to tame immense fault energy, which demands some serious arc-quenching power. That’s where you see advanced methods like a high-power vacuum or SF6 gas, which are needed to extinguish the incredibly powerful arc safely and almost instantly.
How Often Do You Really Need to Maintain a Medium Voltage Breaker?
This really depends on the type of breaker, where it lives, and what the manufacturer recommends. Modern vacuum circuit breakers are the workhorses of the industry; they're incredibly reliable and don't ask for much. You might only need to inspect and test them every 5-10 years.
On the other hand, older oil or air-blast breakers are a different story entirely. Those require a lot more hands-on attention, often needing intensive servicing every single year.
If there's one thing to remember, it's this: always follow the original equipment manufacturer's (OEM) maintenance schedule. Sticking to their guidelines is the single best way to keep your medium voltage circuit breaker safe and reliable for the long haul.
Can I Swap Out an Old Oil Breaker for a New Vacuum Model?
Yes, you absolutely can—and you should. This upgrade is called a retrofit, and it’s one of the smartest investments you can make in your electrical system. Manufacturers have gotten very good at designing modern, direct-replacement vacuum breakers that slide right into the existing switchgear cubicles of those old, outdated models.
Making this switch does a few huge things for you. It immediately boosts safety by getting flammable oil out of your facility, slashes your ongoing maintenance costs, and dramatically improves the reliability and lifespan of your critical infrastructure.
For expert guidance on selecting, installing, or retrofitting your electrical protection systems, E & I Sales offers decades of experience in integrating custom UL control and MV switchgear solutions. Learn more at https://eandisales.com.
